Ballpoint Pen Bombers

 bomber, hi-rez, launch vehicles, Monthly Historical Documents Program, nukes, rockets, spacecraft  No Responses »
Apr 232024

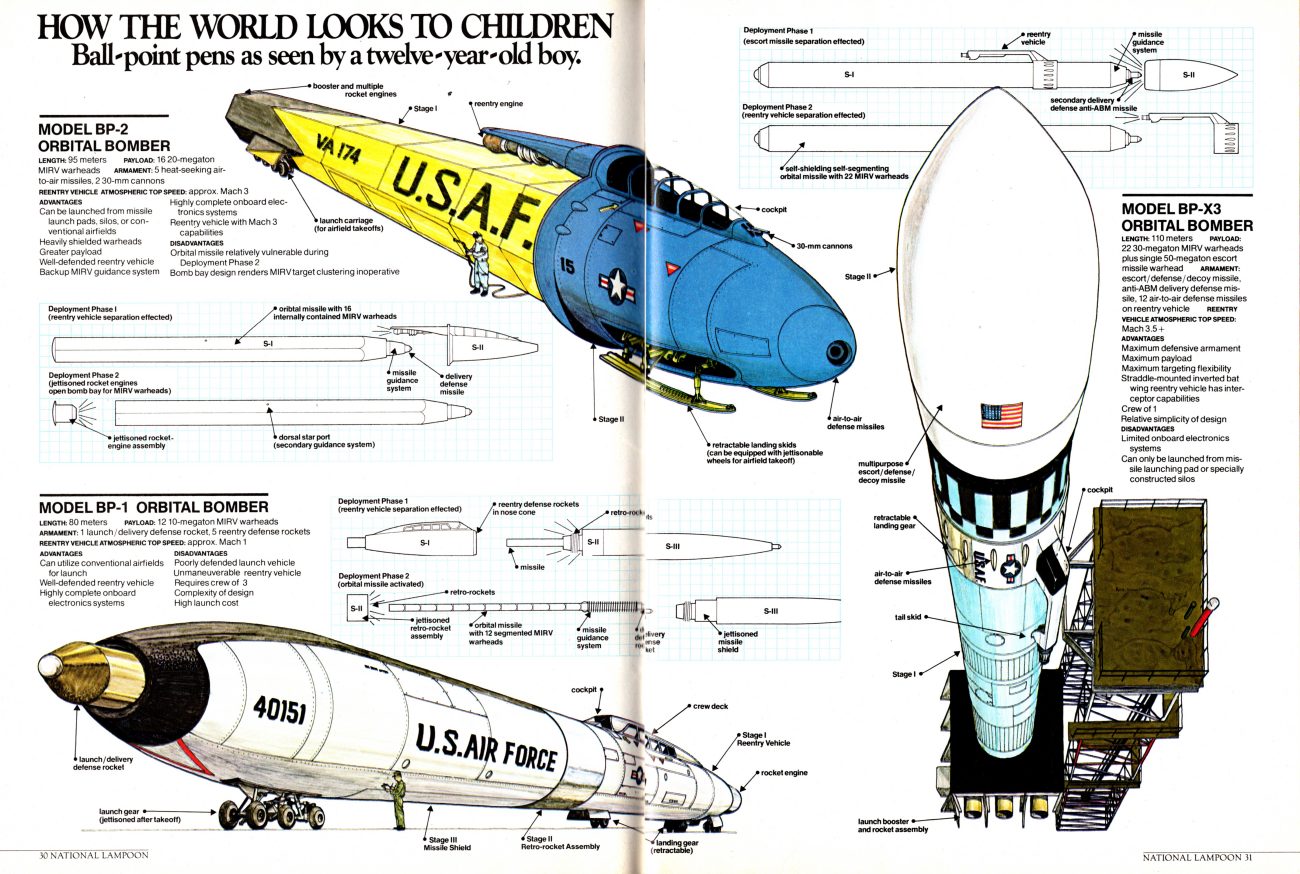

This is a little outside the usual for APR, as it is satire rather than actual aerospace design. But I thought it appropriate nonetheless; I remember dreaming up just about the exact same ideas when I was twelve. There was something about the design of those pens that just *screamed* for them to be envisioned as spaceships and missiles and whatnot.

The full-rez scan of the article, and a few more bits, been made available as a thank-you to APR Patreon and Historical Documents Program patrons at the $4 and above level, placed in the 2024-04 APR Extras Dropbox folder. If interested in this or if you are interested in helping to fund the preservation of aerospace histgory, please consider becoming a patron, either through the APR Patreon or the Monthly Historical Document Program.

 Posted by at 12:36 am

Rockwell Space Station: 1982

 space shuttle, space station, spacecraft  No Responses »
Mar 072024


Published in a magazine in 1983, this artist depiction shows a concept for a 1982 space station by Rockwell. Clearly of the same *kind* of station as the eventual ISS, this is a simpler, smaller construct. However, it also includes a “cargo bay” modeled aft that of the Space Shuttle, allowing payloads (what appear to be temporary science modules) to be readily transferred back and forth.



 Posted by at 10:32 am

First Lunar Outpost artwork

 hi-rez, launch vehicles, Monthly Historical Documents Program, Patreon, rockets, spacecraft  No Responses »
Feb 202024


In 1992 NASA had a flurry of PR about the “First Lunar Outpost” concept which would see the US return to the moon using large lunar landers launched by a single Saturn V derived heavy lifter. A fair deal of concept art was released; much of it used the relatively new technology of computer generated imagery. Five of these images recently appeared on ebay as 16X20 prints; what the heck, I went ahead and bought them. They arrived today and I was pleasantly surprised at the production quality. They weren’t simply printouts glued to cheap foamcore, but instead are very glossy, hard plastic bonded to higher quality foamcore.

I believe I’ll have these professionally scanned and made available to APR Patrons/subscribers.

 Posted by at 3:45 pm

Orion Space Battleship

 bomber, launch vehicles, nukes, rockets, spacecraft  No Responses »
Jan 222024


With all the little publications I’ve written and illustrated, and all the years of blogging ABSOLUTELY BRILLIANT political opinions and the like, it seems that at least *one* of my efforts will go down through the ages: my design for the Orion Battleship. We know to a fair certainty that such a craft was designed in the early 1960s, and that a mockup the size of a car was built; we know some of the components and features of that design. But other than that… we don’t know much. The overall size and configuration are unknown. So, fifteen years ago when I was working on an article for Aerospace Projects Review about large Orion vehicles, I went ahead and made a speculative reconstruction design. I did my best with what was available… and in the years since, nothing seems to have come out to refute the design. I do not contend that the design is an accurate reconstruction; I was never able to get in touch with anyone who knew the Battleship design first-hand to confirm my reconstruction. I could well be *badly* wrong, especially since the descriptions of the original design tend to be second-hand. One day we might find out for sure.

But in the years since I showed my design to the world, I’ve seen it recreated here and there. It seems to be the accepted Actual Design.

Huh.

Behold:

That second video uses a model based on my design, more renders of which are HERE.

Shipbucket:

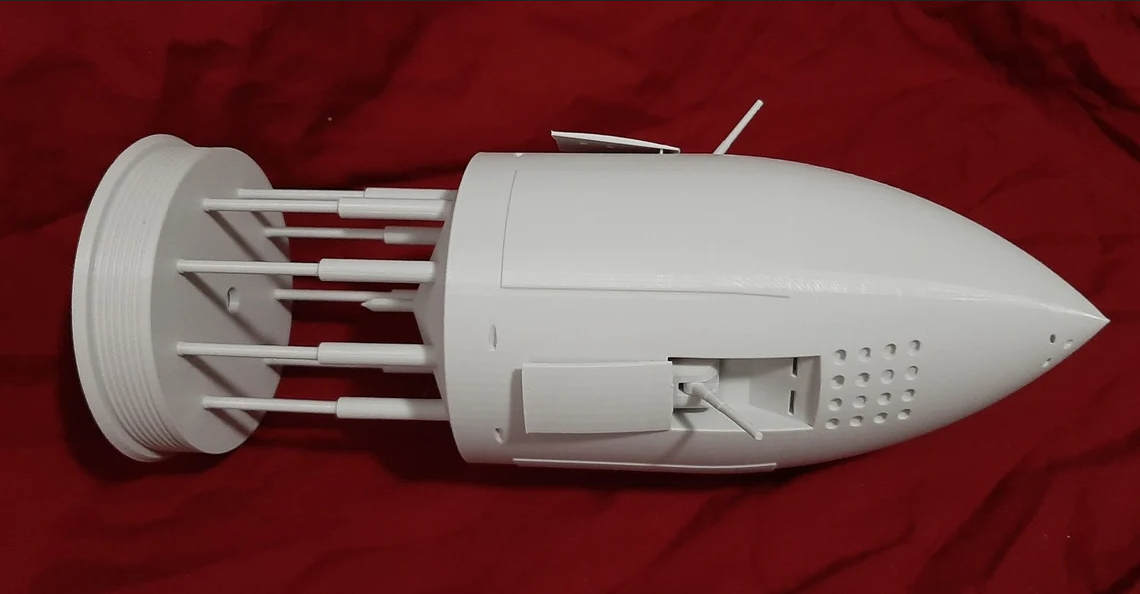

A purchasable 3D printed, lower fidelity copy of my design on Etsy:



My renders – unimpressive even by 2009 standards – even made it into meme format:

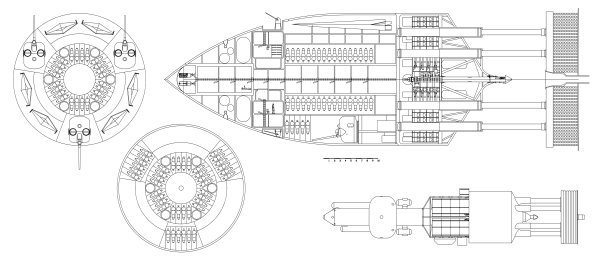

If you want to see the Orion Battleship as I designed it in its original format, check out Aerospace Projects Review issue V2N2.

 Posted by at 12:39 am

August 2023 Rewards

 bomber, CAD Diagrams, hi-rez, jetliner, launch vehicles, Monthly Historical Documents Program, Patreon, rockets, space shuttle, space station, spacecraft, spaceplane, stealth, transports  No Responses »
Sep 012023


The rewards for August, 2023, have been released. They include:

Document: Report No. ZD-013, “Preliminary Detail Specification for United States Navy Class VP Long Range Patrol Seaplane,” Convair, 1 April 1946

Document: “Space Shuttle: What Will It Do?” A 1970’s brochure describing the Shuttle, with six full-color full page illustrations

Art: McDonnell-Douglas lithograph of “NASA Earth Orbital Space Station”

CAD Diagram: Northrop Grumman Next Generation Long Range Strike



If you would like to help fund the acquisition and preservation of such things, along with getting high quality scans for yourself, please consider signing on either for the APR Patreon or the APR Monthly Historical Documents Program. Back issues are available for purchase by patrons and subscribers.







And as happens far too often, I’ve been remiss in my PR campaign. The rewards for July, released a month ago, included:

Document: “C-5 Galaxy Pocket Guide,” brochure giving info on the C-5

Document: GDIC-64 O29-21, “Alighting Gear Convair Model 48 Light Armed Reconnaissance Airplane,” an illustrated report on the landing gear for Convairs competitor for the OV-10

Document: “Police Department Lecture #3 Effects of Atomic Weapons,” an early-50’s paper describing what NYC could expect int he event of a nuclear strike

Diagram: EMW “Wasserfall,” German WWII surface to air guided missile

CAD Diagram: Boeing 2707-100-derived bomber



 Posted by at 12:38 am

Recent acquisitions

 bomber, hi-rez, hypersonic, jetliner, launch vehicles, Monthly Historical Documents Program, Patreon, Patreon catalog, research, rockets, space station, spacecraft, spaceplane, transports  2 Responses »
Aug 182023


Thanks to ebay and my fabulously lean bank account, I have recently procured a number of items of potential interest:

“NASA Earth Orbital Space Station,” a poster-sized lithograph from McDonnell Douglas depicting a space station that tumbles for artificial-G.

“Re-Entry Payload Launch Vehicle,”  A *brief* General Dynamics presentation on a vehicle to launch re-entry vehicles such as MIRV warhead shapes



“Proposed Development Program on Rocket-Type Missiles,” a 1948 Convair report on early ballistic/boost glide missile concepts, that would lead to Atlas. Includes some fantastic large format layout diagrams.



“Detail Specification for Consolidated Vultee Model 117 Airplane Class VR Transport Flying Boat,” August 1950, all the details on the then-brand new Tradewind.





“Detail Specification for Class VP Long Range Patrol Seaplane,” Consolidated Vultee 1946, all the details on a proposed flying boat patrol/bomber

32 issues of “Astronautics” magazine from 1957 to 1969, mostly 57-59 and 63 or so.

The lithograph and the reports will be scanned and put forward for consideration for monthly rewards; the magazines will have the interesting bits scanned and made available to the subscribers/patrons.

 Posted by at 6:21 pm

$200 a round rocketgun

 rockets, spacecraft  No Responses »
Aug 152023


Here’s something you don’t see too often… someone firing *numerous* rounds from a Gyrojet. Each of these .45 caliber rounds are solid propellant rocket units, last manufactured in the 70’s or so. They apparently run about $200 *each,* which makes me wonder if there might be a market for newly manufactured ammo. As a practical  home defense, police or military weapon… the Gyrojet basically wasn’t. It took something like 50 feet for the round to reach maximum velocity, which means at close range it might just bounce off an opponent. But as a range toy they might be fun, especially if the cost per round could be dropped substantially. And there’s no reason why it can’t… sure, each round is more complex than an equivalent conventional bullet, but they are just some basic parts with 1960’s rocket propellant. And that last could doubtless be improved; better propellant, better grain design and better manufacturing of the nozzle plate could *really* boost performance.

The claim is made here that the Gyrojet was designed to be used in space because they were uncertain if conventional gunpowder firearms would work in a vacuum. This is untrue; nobody with the least bit of understanding of the chemistry of gunpowder and how guns work thinks that guns *won’t* work in space. However, conventional firearms do have three major issues for space applications:

  1. Recoil.
  2. Thermal issues: exposure to sunlight and vacuum means that small metal devices like guns heat up *fast.*
  3. Vacuum issues: grease, gun oil and the like boil off quick, meaning they can’t be used in space.



The Gyrojet has far lower recoil than conventional firearms. And the Gyrojet is a far simpler mechanism, made largely from stamped metal sheet to far lower specifications. This means it can heat up without jamming, with virtually no need for lubricants. So the Gyrojet seems like it’d make a dandy sidearm for the USSF. Bump it up to .75 caliber and you have yourself a light bolter. And perhaps best: home manufacture of Gyrojets would be *easy.* A 3D printed Gyrojet, with some *basic* metal parts, would not only be easy to make, but with vastly lower forces imparted on it than a conventional firearm, it’d be far less likely to explode.



So… where are the new-manufacture Gyrojet rounds? At $200 a round for the vintage stuff, you can start off *real* expensive and still undercut the current market.



 Posted by at 8:11 pm

“Journey to the Stars”

 future projects, hi-rez, Monthly Historical Documents Program, Patreon, rockets, spacecraft  1 Response »
May 052023


In 1983 “Science Digest” ran an article that 13-year-old me lost his tiny little mind over. Illustrated by Rick Sternbach, designer of, among other Star Trek vehicles and artifacts, the USS Voyager, it described a series of possible means of interstellar travel. While the physics and engineering of some of them have proven dodgy in the years since (the Bussard ramjet has serious problems with the proposed magnetic fiend, the Enzmann starship has turned out to not be as well thought out as many had assumed, etc.), it remains a tantalizing glimpse of what might be. The article has been scanned in full color and made available to APR Patrons/subscribers at the above-$10 level.



If you would like to help fund the acquisition and preservation of such things, along with getting high quality scans for yourself, please consider signing on either for the APR Patreon or the APR Monthly Historical Documents Program. Back issues are available for purchase by patrons and subscribers.













 Posted by at 9:29 pm

April 2023 APR Rewards

 bomber, fighter, launch vehicles, Monthly Historical Documents Program, Patreon, research, rockets, spacecraft  No Responses »
May 012023


The rewards for April, 2023, have been released. They include:

Document: *Partial* Martin report on the M329 Mach 2 jet seaplane bomber

Document: “Flexible Wing Manned Test Vehicle, Final Program Report,” Ryan, December 1961. report on the development of the “Rogallo Wing” test vehicle.

Document: “10 Jahre TKF/J-90 Vorentwicklung,” conference paper from 1983 from Messerschmitt-Bolkow-Blohm Gmbh describing (in German) the development of advanced fighter jets

Large Format: “NASA’s Space Launch System,” poster with detailed diagrams of the Block 1 and Block 1B SLS

CAD Diagram: B-1B weapons loads. This diagram was created and intended for my “US Supersonic Bomber Projects Volume 1” but had to be cut for space reasons. This includes gravity bombers, cruise missile sand the Vought T-22 “Assault Breaker.”





If you would like to help fund the acquisition and preservation of such things, along with getting high quality scans for yourself, please consider signing on either for the APR Patreon or the APR Monthly Historical Documents Program. Back issues are available for purchase by patrons and subscribers.





 Posted by at 1:12 pm

Satellite Inspection

 Recon, spacecraft  No Responses »
Apr 032023


Ever since the early sixties there have been ideas about “inspector” spacecraft that would check out other satellites. This would be done to see just what some foreign satellite actually was…r econ, communications, navigation, weapons platform. But actually doing it has not but done too often… at least, it hasn’t been *shown.* But here are the results of one commercial satellite – the Worldview-3 earth observer – looking at a Landsat from a range of about 100 kilometers. The imagery is remarkably clear.

 Posted by at 8:55 pm
