Mar 092018


Advanced “space guns,” typically lasers, railguns, coilguns, neutral particle beams and the like, have a problem: power. Nuclear reactors and solar panels can provide power for years at a time, but generally their steady-state power output is only a tiny fraction of the instantaneous power needed when the gun goes off. So to run a weapon that needs many gigawatts for a fraction of a second with a powerplant that produces kilowatts, you need an energy storage system that can convert that energy into power on a moments notice. Things like batteries are great in principle, but their weight is vast and their ability to release power at the high levels needed is generally poor.

Often this has resulted in space weapons that use chemical reactions to provide the power needed. This has meant that the total number of shots that can be fired is strictly limited.

In the 1980’s during the SDI heyday, Westinghouse looked at an alternate approach: rotating hoops. Giant wheels made of advanced composite materials would be spun up over time by a low-power system such as a nuclear reactor, and when needed these flywheels would be electromagnetically braked to generate vast amounts of power as the wheels ground to a  halt. The system could be “reloaded” by slowly spinning the wheels up again… assuming the system hadn’t torn itself part.

The weapon shown below is probably largely notional, no masses or dimensions were given. But based on a smaller terrestrial unit (with ten hoops, each 14.5 meters diameter, massing 140,000 kg each, spinning at 1800 RPM to deliver a total of 1 gigawatt for 10 minutes to power anti-missile lasers and such), this can be assumed to be a fairly *vast* construction, far heavier than anything mankind has so far launched into orbit. Obviously such a thing would be impossible to launch as a unit; it would be assembled in space using spools of fibers wound in place. Presumably the weapon itself would be at least somewhat aimable independent of the flywheels… slewing *them* about to aim at a moving target would seem to be an exercise in futility.

This came from the paper “Rotating Hoop, Pulsed-Energy Converter” contained in “Transactions of the Fifth Symposium on Space Nuclear Power Systems.” A PDF of that can be downloaded if you go HERE and click the “PDF” button.

Support the APR Patreon to help bring more of this sort of thing to light!



patreon-200

 Posted by at 4:23 am
Feb 272018


Rewards have been issued to APR Patreon patrons for February, 2018. This month, the diagram is a 1/40 scale B-52B diagram. Normally the diagrams are sent out at full 300 dpi (with 125 dpi for the $1.25 patrons), but at 300 dpi the diagram is simply Way Too Big at over 40,000 pixels wide. Most image viewing programs will simply go “nope”and refuse to even try to display such images. so this month the image is sent out at 200 dpi (still slightly over 30,000 pixels wide), and 83 dpi for the $1.25 patrons. The 83 dpi version is also included for the higher level patrons for easier viewing.

Also: the documents this month include a United Aircraft paper on advanced future space propulsion systems as seen from 1969, and a January 1953 Douglas Aircraft design study for the DC-8. The CAD diagram this month is the Ganswindt Weltenfahrzeug… a truly terrible design for a spaceship from 1899. Terrible though it may be, it one of the first designs that is clearly in the Project Orion family tree…

If you are interested in helping to preserve (and get copies of) this sort of thing, consider signing up for the APR Patreon.



patreon-200

 Posted by at 3:38 pm
Feb 192018


The NERVA nuclear rocket, studied throughout the sixties into the early 1970’s, would have been a great way to propel spacecraft. But a nuclear rocket is not the same sort of reactor as is generally designed for use in space to generate electrical power. A NERVA can produce *gigawatts* of thermal energy, energy which is carried away with the high mass flow rate of the hydrogen propellant. Power reactors, on the other hand, are generally designed for several orders of magnitude lower thermal power… a few thermal megawatts, perhaps, to produce a few hundred kilowatts of electricity.

However, the fact remains that a nuclear rocket *is* a nuclear reactor. For most missions it would burn for a few minutes, at most perhaps  few hours, out of a mission lasting perhaps years. It is thus a bit of a shame to waste all that potential. So over the decades many studies have been made for using a nuclear rocket as a power generator .

One such study was reported by Aerojet in 1970. The abstract is HERE, the direct PDF download if HERE.

In this study, the NERVA would pump out 1,500 thermal megawatts during the propulsion phase(producing 75,000 pounds of thrust), dropping to 250 to 505 thermal kilowatts during the power generation phase, enough to create 25 kilowatts of electricity. This would be a very low-power, low-temperature use of the reactor, reducing system efficiency… but still, making use of a reactor that was already there, and not noticeably using up the fission fuel in the reactor. The reactor would be run at very lower power levels and hydrogen would flow through a closed loop built into the reactor; the warmed gaseous hydrogen would flow through a turbogenerator to create electricity; the warm hydrogen would then pass through a radiator built on the outer surface of the hydrogen tank itself.

Support the APR Patreon to help bring more of this sort of thing to light!



patreon-200



 Posted by at 3:27 am
Jan 172018


The Soviet Tsar Bomb, dropped in 1961 and with a yield of around 50 megatons (backed down from the design yield of 100 megatons) is acknowledged as the biggest bomb ever tested. But is it the most powerful bomb ever designed, or ever built? I’ve discovered some snippets of evidence that the US *may* have designed, and even built, an even bigger bomb.

Several frustratingly unenlightening reports give bits and pieces of information on a bomb code-named “Flashback.” This device was apparently air-dropped near Johnston Atoll. “Flashback” was designed by Sandia Labs and flown from Kirtland Air Force Base to Oahu, Hawaii and then to Johnston Atoll. There are some Terrible Quality Photos:

The Flashback bomb was so big that it could not quite fit within the confines of the B-52 bomb bay, and required the removal of the bomb bay doors.

Of course, this could have been purely an aerodynamic shape. Or perhaps it was a large conventional bomb, a giant “Daisy Cutter.” Or perhaps it wasn’t an actual bomb as such, but just some sort of science experiment to be dropped from an aircraft. Lots of possibilities. But those possibilities drop away with some of the hints that are provided, such as:



This came from an electromagnetic radiation effects report, describing – seemingly – the effect of radio emissions from the B-52 upon the electronics of the Flashback bomb. Since the bomb projected well below the belly, it was subject not only to very cold temperatures but also to intense radio transmissions from the antennae below the B-52 fuselage, so it makes sense they’d test for that. You don’t want the B-52’s communications to cause the bombs fuzing to go screwy. In this particular test, the parachute was not packed within the tail of the Flashback; instead test instruments were fitted there. More tellingly, “All HE (high explosive) and nuclear components were deleted.” Emphasis mine. Additionally, “A simulator was used to replace the warhead.”

You don’t have a warhead in a science package. You don’t have nuclear components in a conventional bomb. and if this was simply an aerodynamic and mass simulator of a proposed bomb… you wouldn’t remove the nuclear materials, because you wouldn’t have installed them in the first place. You don’t fill a mockup full of jet fuel, after all.

Such details as the weight of the unit and the yield of the device are seemingly not given. But they can be guessed at. A report on testing of the tailfin has this:

I’m not quite sure how that load of 36,000 pounds would relate to any actual forces applied to an actual bomb, but it *may* indicate the weight.

Other reports list the sizes and weights of items to be shipped to Oahu (and then to Johnston Atoll) for the test. Some of them are intriguing… what is “EMPTV?” TV certainly means “test vehicle.” But does “EMP” mean Electromagnetic Pulse? If so, does that mean another bomb-like unit, or just a science package, meant to be *hit* with an EMP to see how it reacts? Or is it a specific EMP generator, to be dropped out of an aircraft? Whatever it is, it weighed 14,500 pounds and was around 221 inches long and perhaps 59 or so inches in diameter, and was quite classified (SRD = Secret Restricted Data… “Data concerning the design, manufacture, or utilization of atomic weapons; production of special nuclear material; or use of special nuclear material in the production of energy“).

And there’s 38,000 pounds of “test equipment,” which could be anything:

There was also this:

Here, the “BTV” is the “Big Test Vehicle,” 25,000 pounds, 309 inches long by up to 76 inches in diameter, also classified SRD. Big as this is, though, it’s possibly not the device hanging below the B-52’s belly; the BTV is referenced several times in a way that seems to make it distinct from the Flashback Test Vehicle. But perhaps they are the same thing.

The Flashback Test Vehicle, fortunately, was shown in a fair diagram of a wind tunnel model. Full scale, it was 297 inches long (not counting parachute pack or what appear to be antennae) and was ~96 inches in diameter. This makes it bigger, and presumably heavier, than the BTV. So 36,000 pounds is not unreasonable.

Other ill-described tests show the Flashback as a much smaller unit than the bomb. This, *perhaps,* is merely the “physics package” of the device. This test, illustrated with one of histories worst-quality photos, was carried out in a very cold high altitude chamber, and shows two more mysteries: the “Companion Test Vehicles,” or CTVs, which are unexplained. Speculating wildly, they might have been designed to have the same ballistic properties as the Flashback, so if you drop them from the B-52 along with the Flashback, they’ll fall along with it, following the same trajectory and staying reasonably close. Perhaps thy had cameras. perhaps they had sensors. Perhaps they had transmitters. Who knows.

And there was also the “UTV.” No further data.

Perhaps the Flashback, BTV, EMPTV and UTV were all different sizes of new gigantic bombs…?

Code names generally have no relationship to the subject, but are chosen essentially at random. One would never know that “Copper Canyon” was a program to develop a scramjet SSTO. Similarly, “Operation Paddlewheel” tells nothing. But perhaps, just barely, “Flashback” might have some meaning. Comparing the Flashback to the Tsar Bomb, it it remarkable how similar they are in terms of both size and shape. One might be forgiven for wondering if Flashback was the end result of someone trying to design a Really Big Bomb based on nothing more than a verbal description of the Tsar Bomb, given, perhaps, by a spy or defector. So *perhaps* this project was a “flash back” to the earlier Soviet design. If so, what was the purpose? Was it to give the United States the same insanely pointless capability? Or was it just to find out what the capabilities and limitations the Soviets had gifted or saddled themselves with?

Using the wind tunnel model diagram, I’ve reconstructed the Flashback to scale with the Tsar Bomb:

As can be seen, the Flashback had much the same configuration, but was substantially “fatter.” Impossible to say if that was because the US designers needed the extra diameter to get the same yield (theoretically 100 megatons), or if Sandia Labs went head and designed themselves an even bigger bang. What use is a 200 megaton bomb? Not much. But then, neither is a 100 megaton bomb, especially one so big that the carrier aircraft essentially has to *lumber* to the target all the while carrying the worlds largest bullseye.

As always, if anyone has any further info, I’d love to see it.

PS: I’ve taken the Flashback model and have turned it into 2D CAD diagrams, including scale comparison with the Tsar and showing it stuffed into the B-52’s belly. This diagram will be one of this months rewards for Patrons of the APR Patreon. A simplified version will be included at the $5 level; the full diagram will be in the $8 level rewards package. So if you’d like access… sign up for the APR Patreon.

UPDATE:

It’s good to get a fresh perspective. Sadly, the perspective emailed to me was that the Flashback sure looked like a missile nosecone. So I pulled up the Flashback diagram I made from the wind tunnel model diagrams and put the RV from the Titan II ICBM on top of it. It’s not an exact match, but it’s distressingly close. If it wasn’t for the noticeably larger radius of the Flashbacks nose, I’d say it was spot-on… the outer diameter and angle are incredibly close matches.

So…what would be the point of that? Some sort of science experiment, clearly, rather than a weapons test. But what point would there be in dropping a Titan RV from a B-52? Why dangle it from a chute? Why add the heavy tail & fin assembly?

If it turns out that this was an experiment with the Titan RV, that would be less interesting than the revelation that the US developed a 50 to 100 megaton nuke. But it’s still interesting. Just not *as* interesting.

 Posted by at 9:31 pm
Jan 142018


A 1966 Aerojet concept for a space probe with a nuclear reactor and ion engines. Note the largish thermal radiator “wings;” such things are usually left off spacecraft in science fiction, but they are a vital part of any nuclear spacecraft. Nukes, after all, are simply heat sources; in order to get useful electrical power out of them, the heat must be used to boil a working fluid which runs a turbogenerator; and the hot gas then needs to be condensed back to a liquid by radiating the heat way to space. And thermal radiation is a terribly slow and weak process, necessitating large radiators. Electricity can also be created with thermionic systems, which generate electricity across a thermal differential… hot on one side, cold on the other. But unless the cold side it attached to some radiators, the cold side will soon be just as hot as the hot side, and then… no thermal differential, no power generation.

Note also that even with a substantial powerplant and the sizable bank of ion engines, acceleration is going to be creakingly slow. Thus you can get away with spindly structures. The reactor itself is the tiny little tin can-looking thing, top and centerline; the U-shaped structure around it is a radiation shield protecting the electronics, structure and radiators from the radiation spat out by the reactor.

 Posted by at 2:38 am
Dec 202017


Mobile energy depot feasibility study: summary report

Description:

Declassified 28 Aug 1973. Various methods of producing and using nuclear power for military land vehicles and other military equipment were investigated and evaluated. A nuclear-powered mobile energy depot (MED) would move with advancing armies and produce vehicle fuels from materials readily available in the field. This would make mechanized units independent of external fuel supplies for extended periods, and permit them to move quickly and easily to areas impossible for units that depend on the customary fuel supply lines. Many possible MED systems were evaluated on the basis of energy sources, fuel manufacturing (by both conventional and chemonuclear processes), fuel storage and transportation, and fuel utilization in both present-day internal-combustion engines and power units of the future (i.e., fuel cells). The applications of more than a dozen MED systems to vehicular propulsion were studied.

The report can be downloaded directly from HERE.

Support the APR Patreon to help bring more of this sort of thing to light!



patreon-200



 Posted by at 10:15 am
Nov 142017

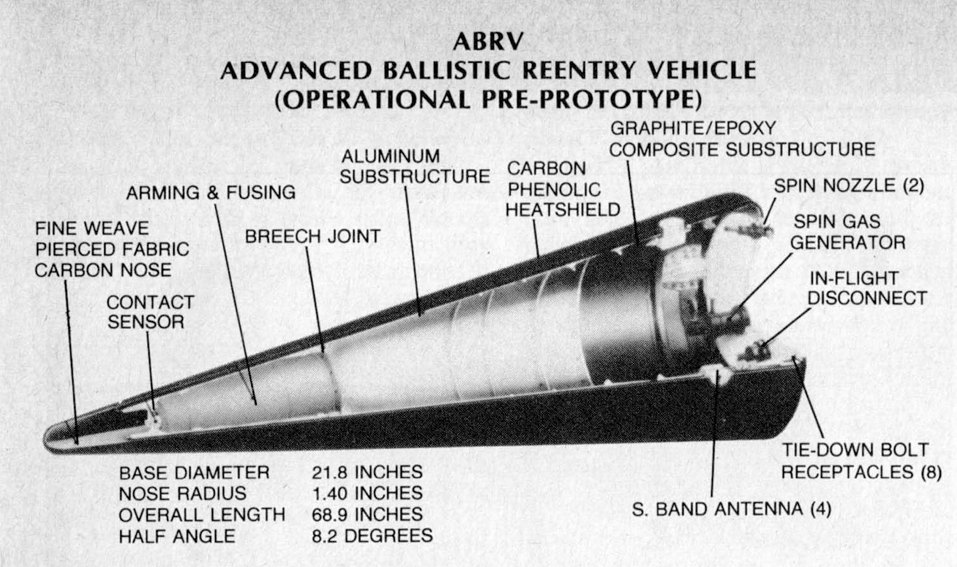

A while ago an ebay seller had a display model of a maneuverable re-entry vehicle, a warhead for an ICBM.There was apparently no documentation to go with it, so details are pretty much utterly lacking. Still, it does look reasonably likely to have been a “real” display model built by or for the USAF or a defense contractor. It’s simple… a cone with four sides shaved off with four added flaps for control. This basic geometry has been popular for maneuverable warhead concepts for decades; McDonnell-Douglas used a similar shape (explicitly stated as having been derived from their maneuverable MIRV studies) for their Delta Clipper SSTO, and an even closer shape for their X-33 and follow-on concepts.

 Posted by at 12:28 pm
Nov 052017


Currently being sold on ebay is a display model of a missile, a “Martin ASM.” ASM almost certainly means “Air to Surface Missile,” but otherwise there’s no further info. Seller seems to think it’s related to the Assault Breaker project, but it looks vaguely like a Skybolt-ish air-launched ballistic missile.

https://www.ebay.com/itm/Vintage-Martin-Marietta-ASM-ASSAULT-BREAKER-Desk-Model-Missile-/352201681398







 Posted by at 5:59 pm
