Sep 212017


Now available: two new US Aerospace Projects issues. Cover art was provided by Rob Parthoens, www.baroba.be

US Bomber Projects #20:XB-59 Special

US Bomber Projects #20 is now available (see HERE for the entire series). Issue #20 collects all the previously published articles and diagrams of the XB-59 antecedent designs and updates them. Additionally, more antecedent designs have been included as well as several designs that followed along after the XB-59. The biggest USXP publication yet!

USBP 20 includes twenty nine unique aircraft concepts (the usual issue of USXP has eight designs) from Boeing Models 484 and 701 showing how Boeing evolved the XB-59, their competitor to the Convair B-58 “Hustler.” Beginning with subsonic flying wings, the concept saw concepts both conventional and unconventional before eventually settling on Model 701-299-1, the final XB-59 design. This issue includes a half dozen Model 701 designs that followed along after the cancellation of the XB-59 program.



USBP #20 can be downloaded as a PDF file for only $8:

——–




US Launch Vehicle Projects #04

US Launch Vehicle Projects #04 is now available (see HERE for the entire series). Issue #04 includes:

  • Space Carrier Vehicle: A US Army lunar rocket with 8 F-1 engines
  • Convair Reusable Helios: A stage-and-a-half monster with a gas core nuclear engine
  • Boeing Model 896-111: A 1980’s two stage transatmospheric vehicle
  • Project RAND Satellite Rocket 3-Stage: A 1947 satellite launcher
  • Convair Saturn V-R: An idea on how to make a fully reusable Saturn V first stage
  • Lockheed STAR Clipper: A 1968 stage-and-a-half lifting body Space Shuttle
  • Shuttle-C: The  Shuttle derived vehicle design that came closest to being built
  • Titan III Growth/156-inch boosters: A more powerful version of the Titan III for Dyna Soar launch



USLP #04 can be downloaded as a PDF file for only $4:

——–


Also recommended, these previous Specials:

US Bomber Projects #14: System 464L Special

USBP#14 brings together the competitors to Weapon System 464L, the first major effort in the Dyna Soar program. These designs were previously shown individually in prior issues of USBP; here they are brought together, with some updates, as well as a few extra diagrams and a section of diagrams formatted for 11X17 printing. This issue includes info and diagrams of the Lockheed, Republic, General Dynamics, McDonnell, Boeing, Douglas, Northrop, North American and Martin-Bell entries as well as their various booster systems. Also included are detailed diagrams of the ultimate Dyna Soar design, the 2050E.

USBP#14 can be purchased for downloading for the low, low price of $6.

usbp14ad2


US Bomber Projects #16: The B-52 Evolution Special

Boeing Model 444 A: A late war turboprop heavy bomber
Boeing Model 461: An early postwar turboprop heavy bomber
Boeing Model 462: A large six-turboprop ancestor of the B-52
Boeing Model 462-5: A six-turboprop B-52 ancestor
Boeing Model 464-17: 1946 four-turboprop strategic bomber, a step toward the B-52
Boeing Model 464-18: a reduced-size version of the 464-17 turboprop strategic bomber
Boeing Model 464-25: a modification of the 464-17 turboprop bomber with slightly swept wings, among other changes
Boeing Model 464-27: a slightly-swept turboprop B-52 progenitor
Boeing Model 464-33-0: A turboprop B-52 predecessor
Boeing Model 464-34-3: A turboprop B-52 predecessor
Boeing Model 464-40: The first all-jet-powered design in the quest for the B-52
Boeing Model 464-40: The first all-jet-powered design in the quest for the B-52
Boeing Model 464-046: A six-engined B-52 predecessor
Boeing Model 464-49: The penultimate major design in the development of the B-52
Fairchild M-121:A highly unconventional canard-biplane
Convair B-60: A swept-wing turboprop-powered derivative of the B-36
Douglas Model 1211-J: An elegant turboprop alternative to the B-52
With additional diagrams of the B-47, XB-52 and B-52B

USBP#16 can be purchased for downloading for the low, low price of $6.





 Posted by at 7:51 am
Apr 022017


I’m essentially done with the drafting portion of the exercise. Now to finish the writing. I had planned on releasing ll five at once, but due to external factors I’ll almost certainly have to split this up. So… which ones do people want more? The publications forthcoming are Fighters, Bombers, Transports, Launchers and Recon & Research. Comment below…

 Posted by at 11:05 pm
Mar 102017


Coming soonish: the return of USXP publications. Five are under current development and are mostly done. There is a new title in the bunch… USRP. Strictly speaking it should probably be USR&RP… United States Research and Recon Projects. Perhaps Recon and Research aren’t necessarily the most obvious categories to link together into a single title, but apart from the vitally important alliteration, there is this important fact: compared to, say, Bombers, there aren’t that many Recon and Research projects out there.

If there are specific proposals, or general categories you’d like to see in future publications, feel free to comment below.

 Posted by at 10:41 am
May 302016


I’ve recently figured out how to get reliably good-quality vector graphic PDF files from my AutoCAD diagrams.These differ from standard “raster” graphics like GIFs and JPGs in that they are composed of scalable lines rather than pixels; this means that they can be printed off at many scales and they’ll retain clarity.

I think a lot of the diagrams would look quite good printed in large format; I’ve previously mentioned that I’m working on a few diagrams specifically for printing off on large format (24X36) mylar, but I’ve others that I think would also look good scaled for 18X24. I’m making these first seven diagrams available, formatted and scaled for 18X24. They can be viewed on screen, printed on a standard printer or printed by a large format printer all with equal clarity.

If this idea appeals, be sure to tell your friends, family, foes, anyone you think might be interested. Also be sure to comment if there are any diagrams I’ve previously created for APR, USXP or elsewhere that you’d like to see in this format. Some of them would be best as multi-sheet diagrams. Suggestions on how to improve also appreciated.

CAD007

CAD 007: Northrop Low Altitude Penetrator

A 1/72 diagram of a 1979 design for a B-2 alternate configuration

Download for $3

———————————

CAD006

CAD 006

A 1/96 scale diagram of the 1979 Rockwell D645-4a spanloader bomber.

Download for $3

———————————

CAD005

CAD 005

A 1/144 scale diagram of the Manned Spacecraft Center MSC Orbiter 020, a 1972 Space Shuttle concept with a single 260″ solid rocket booster.

Download for $3

———————————

CAD004

CAD 004

A 1/350 scale diagram of the 1971 Boeing Resource Air Carrier (AKA RC-1, AKA “Brute Lifter”) designed as a flying oil tanker for the arctic.

Download for $3

———————————

CAD003

CAD 003

A 1/72 scale diagram of the Martin-Marietta “Zenith Star” experimental space-based laser for the Strategic Defense Initiative.

Download for $3

———————————

CAD002

CAD 002

A 1/24 diagram of the Lockheed “Harvey,” the initial concept for a low radar cross section strike platform that eventually became the F-117.

Download for $3

———————————

CAD001

CAD 001

A 1/32 diagram of the North American Rockwell D-541-4 “Surprise Fighter” from 1973, an early stealth concept designed to sneak up on Soviet AWACS planes.

Download for $3




Download all seven for $18.90 (10% off)



 Posted by at 1:36 pm
May 162016

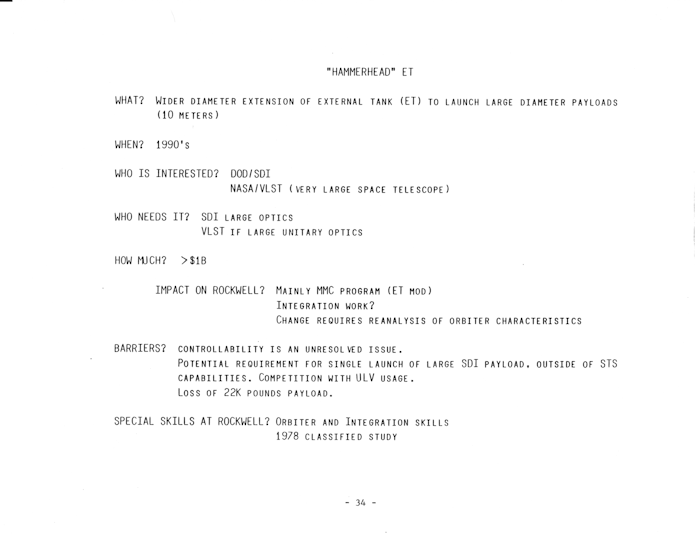

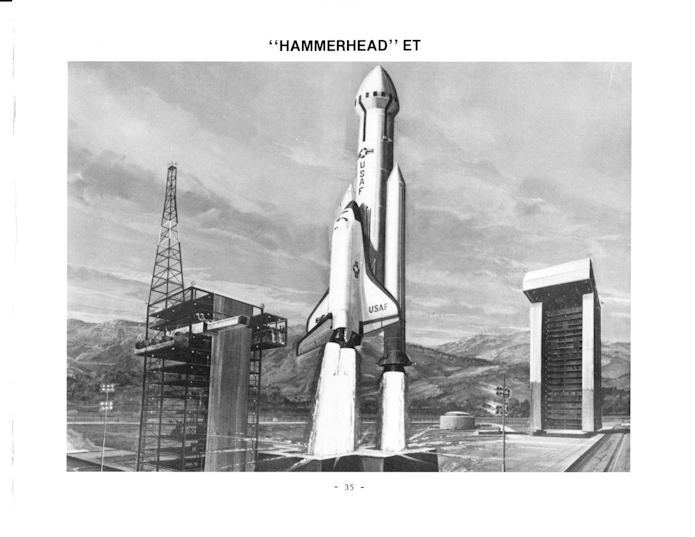

A 1977 Rockwell concept for how to expand the utility of the Shuttle system: move the payload from the Orbiter and put it in a shroud ahead of the External Tank. This would have allowed for much larger-diameter payloads to be carried. The ET would of course have had to go into orbit with the Orbiter itself. More info and diagrams of this are in US Launch Vehicle Projects issue 1.

uslp 01-07-1

 Posted by at 9:24 pm
May 012016


I admit that the USBP series looks kinda… bland. It’s text and line drawings; not a whole lot can be done to jazz that up. Especially since I have no head for graphics design whatsoever apart from layout diagrams.

Still, one reader sent me a mockup of a revised cover of USBP #18:

USBP18blue

Things are moved around a little bit, but the obvious change is the addition of color. The suggestion was also made to consider color-coding each title in the USXP series. Just off the top of my head, I came up with:

Bombers: Olive Drab

Spacecraft: Black

Launch Vehicles: Blue on bottom, transitioning to black at the top

Fighters: slightly bluish gray (like the F-15 or F-22)

Transports: ??

VTOL: ??

The USBP#18 cover was re-done to reflect this, thusly:

USBP18green

Thoughts? Is this more appealing?How about color-coding… good idea or not? And if so, what colors?

I tried something vaguely like this once before, with USBP#05.

 Posted by at 10:41 am
Dec 072015


USLP 03

Issue 03 of US Launch Vehicle Projects is now available (see HERE for the entire series). Issue #03 includes:

  • Juno V/Titan/Nomad: A 1958 concept for a space launcher using an ICBM for upper stages
  • Convair ATE Nova: A 1963 idea for winged airbreathing boosters
  • B-70/Gemini: Using a bomber as a booster
  • Phase II VTOHL Orbit-On-Demand: a 1985 concept for a relatively small two stage to orbit spaceplane
  • NASA Lewis Saturn Ib/Centaur/Kick Stage: a high energy upper stage
  • NASA MSC 042B/Titan IIIL6: a straight-winged orbiter atop a large Titan derivative
  • Heavy Lift Titan: A large diameter Titan core with three Shuttle boosters
  • Escher “Unshackled”: An unconventional idea for a lunar rocket

uslp03ad2 uslp03ad1

USLP #03 can be downloaded as a PDF file for only $4:

——–

—–

Large format USBP drawings, Issues 10-12

The CAD drawings created for USBP reformatted and rescaled for 11X17 collected in a separate volume. Drawings have in some cases been corrected, improved and added to.

USBP 11X17 10-12 collects the diagrams created for issues 10, 11 and 12, including:

Boeing Model 464-34-3, Republic mach 7, Lockheed CL-1301-1, Convair WS-125A, Boeing 484-415, Martin Model 223-10, Boeing Model 814-1010 Dyna Soar, Martin Model 192-5, Boeing Model 464-40, Boeing Model 701-218, Northrop Nuclear flying wing, North American D118, Martin Model 223-11, North American Model 705-00-04, Bell/Martin 464L, Boeing B-1, Boeing Big Bird BB 6800, Boeing Model464-41, Douglas MX-2091-E, Boeing Model 701-238, Martin Model 223-12, Northrop Nuclear Flying Wing, Rockwell MRCC, Lockheed CL-820-8

usbp11x17_10-12ad1

USBP11x17-10-12 can be downloaded as a PDF file for only $10:
————–

—-

Large format USBP drawings, Issues 13-15

The CAD drawings created for USBP reformatted and rescaled for 11X17 collected in a separate volume. Drawings have in some cases been corrected, improved and added to.

USBP 11X17 13-15 collects the diagrams created for issues 10, 11 and 12, including:

Ryan Model 162, Boeing Orbital bomb, Northrop Atomic Wing, Consolidated Vultee High Speed Flying Boat, Martin Model 189, Boeing Model 464-046, Curtis F-87C, Boeing Model 701-247, Lockheed WS 464L Dyna Soar, McDonnell WS 464L Dyna Soar, North American WS 464L Dyna Soar, Republic WS 464L Dyna Soar, Convair WS 464L Dyna Soar I, Convair WS 464L Dyna Soar II, Douglas WS 464L Dyna Soar, Northrop N206 WS 464L Dyna Soar, Boeing Model 814-1010 Dyna Soar II, Bell/Martin WS 464L Dyna Soar, Boeing Model 2050E Dyan Soar, Boeing Dyna Soar/ Titan IIIc, Bell D2001 TS-149, Lockheed Harvey; Convair Model 35, Rockwell D661-27, Boeing Model 464-49, Boeing Model 988-123, Boeing Manned Orbital Bomber, Boeing Model 701-251

usbp11x17_13-15ad1

USBP11x17-13-15 can be downloaded as a PDF file for only $10:
————–

—-

 Posted by at 3:30 pm
Aug 012015


I have added the full-rez version of this to the 2015-07 sub-folder of the APR Patreon “Extras” folder on Dropbox. What is depicted is a 1985 Martin Marietta design for an Unmanned Launch Vehicle, a Shuttle derived vehicle that replaced the Orbiter hanging off the side with an inline payload shroud up top and a small propulsion/avionics module that would have three SSME and two OMS engines, in much the same positions as the Orbiter engines. This would allow the booster to lift off from existing Shuttle facilities with minimal modifications. The P/A module would be a biconic lifting body allowing recovery and re-use. Not only would the P/A module go into orbit, but so would the external tank. Each flight of this vehicle would have the potential to orbit the shell of a fantastic space station.

This vehicle was described in greater detail in US Launch Vehicle Projects #2.

MM Inline Shuttle Derived Vehicle 1985



If you are interested in the high-rez version of this, it and many more are available to all $4 and up patrons at the APR Patreon.

 Posted by at 10:10 pm
Jul 082015


Now available… three new additions to the US Aerospace Projects series.

US Bomber Projects #15

USBP#15 includes:

  • Bell D2001: A 1957 eight-engined Bell VTOL strike plane for the Navy
  • Lockheed “Harvey”: AKA the Hopeless Diamond, Lockheeds first design for what became the F-117
  • Convair Model 35: An early push-pull concept for the B-36
  • Rockwell D661-27: A nuclear powered strategic bomber
  • Boeing Model 464-49: The penultimate major design in the development of the B-52
  • Boeing Model 988-123: A highly agile stealthy strike fighter
  • Boeing Orbital Bomber: An early concept for a Dyna Soar derivative with eight nukes
  • Boeing Model 701-251: A twin engined concept on the road to the XB-59

USBP#15 can be purchased for downloading for the low, low price of $4.

usbp15ad2

usbp15ad1

——————————————-

US Transport Projects #4

USTP#4 includes:

  • Boeing Model 473-13: An early twin-engine jetliner
  • ICARUS Troop Transport: 1,200 marines, anywhere, anytime
  • Republic Model 10 SST: A little known SST competitor
  • Lockheed CL-593: A giant, if slow, logistics transporter
  • Boeing 763-059 NLA: A whole lotta passengers in one place
  • Fairchild M-534: A B-36 converted into a vast cargo carrier
  • Lockheed CL-1201: Probably the largest aircraft ever designed
  • Oblique All-Wing Supersonic Airplane: A supersonic variable-orientation flying wing

USTP#4 can be purchased for downloading for the low, low price of $4.

ustp04ad2

ustp04ad1

——————————

US Launch Vehicle Projects #2

USLP#2 includes:

  • Juno V, 4 stage: An early design that became the Saturn rocket
  • Boeing “Space Freighter”: a giant two-stage spaceplane for launching solar power satellites
  • Boeing NASP-D: A rare look at an operational National Aerospace Plane derivative
  • LLNL Mockingbird: The smallest SSTO ever designed
  • Boeing Model 922-101: A fully reusable Saturn V
  • NAR Phase B Space Shuttle: a fully reusable two-stage concept
  • Martin Marietta Inline SDV: A Shuttle-derived heavy lifter
  • Scaled Composites Model 351: The Stratolaunch carrier aircraft

USLP#2 can be purchased for downloading for the low, low price of $4.

uslp02ad2

uslp02ad1

 Posted by at 12:41 am
