I’ve had a stack of fiche and a number of rolls of microfilms sitting around doing nothing for a decade and more due to a lack of ability to get good images off ’em. Every scanner I came across out in the wild would only do two-bit black-and-white scans, which turned the already dubious image quality into useless mush; efforts to capture the images via photography were roughly equally useless. Fortunately, at long last, I found that the University library up in Logan has microform scanners that do proper grayscale. So today I blew a number of hours digging through some old periodicals (“Space World”) and making scans. At last I can get half-ass decent copies of a whole bunch of German V-2 diagrams, among other things.

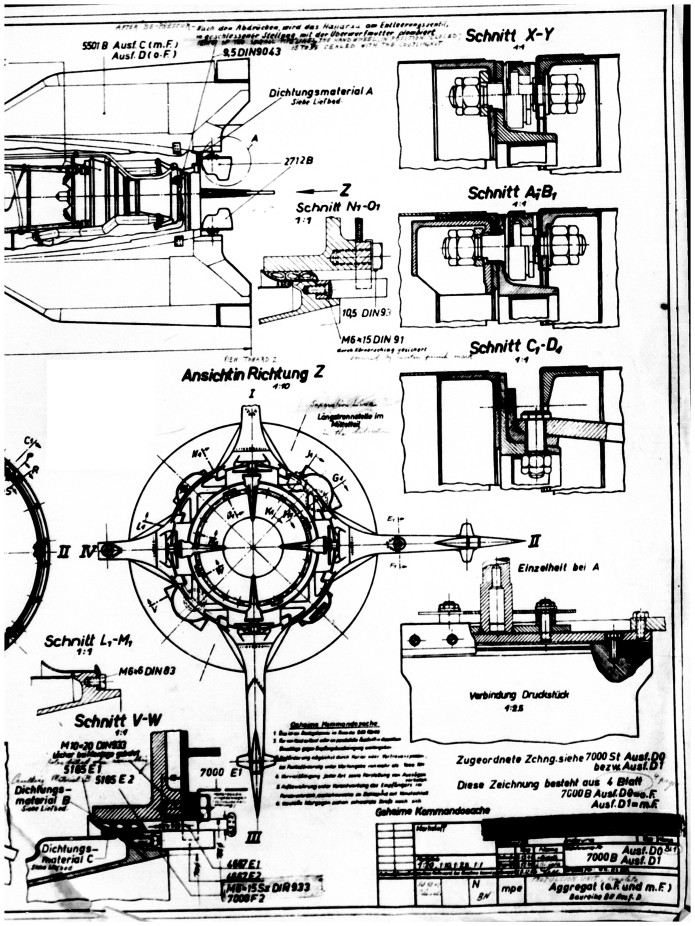

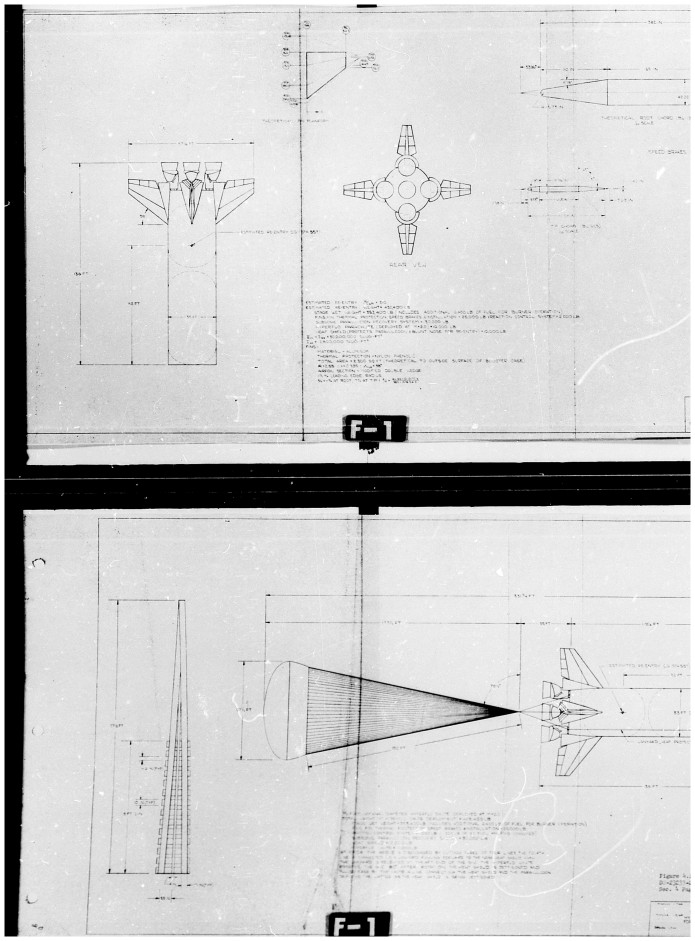

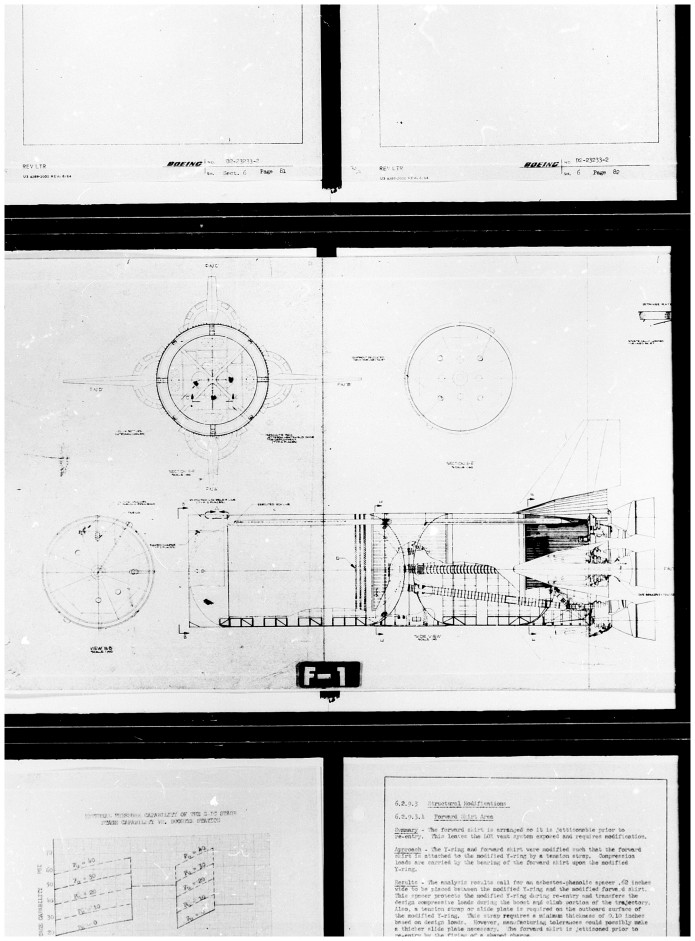

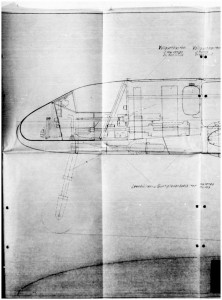

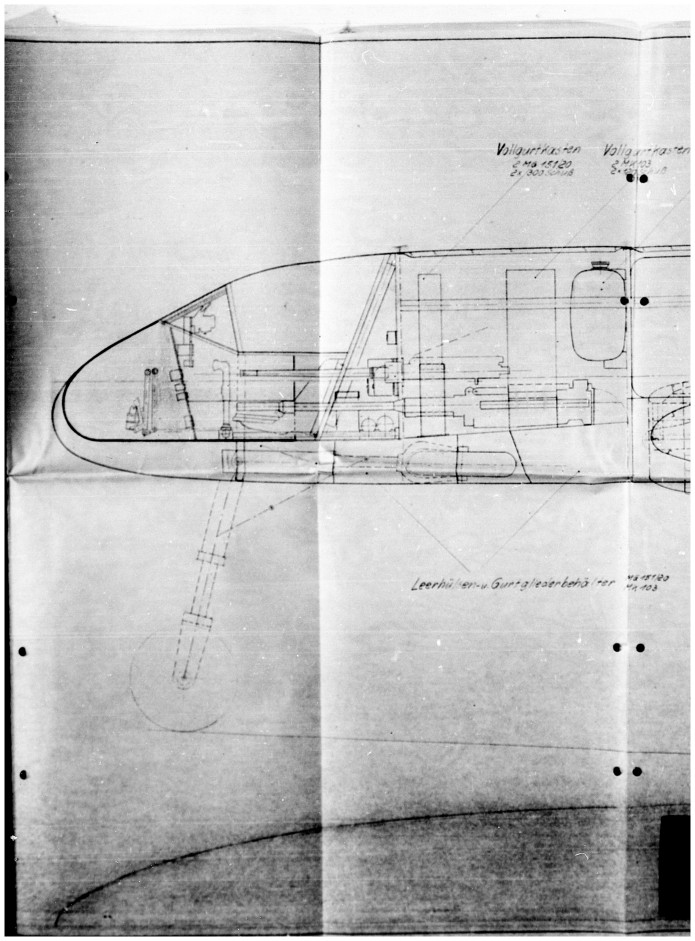

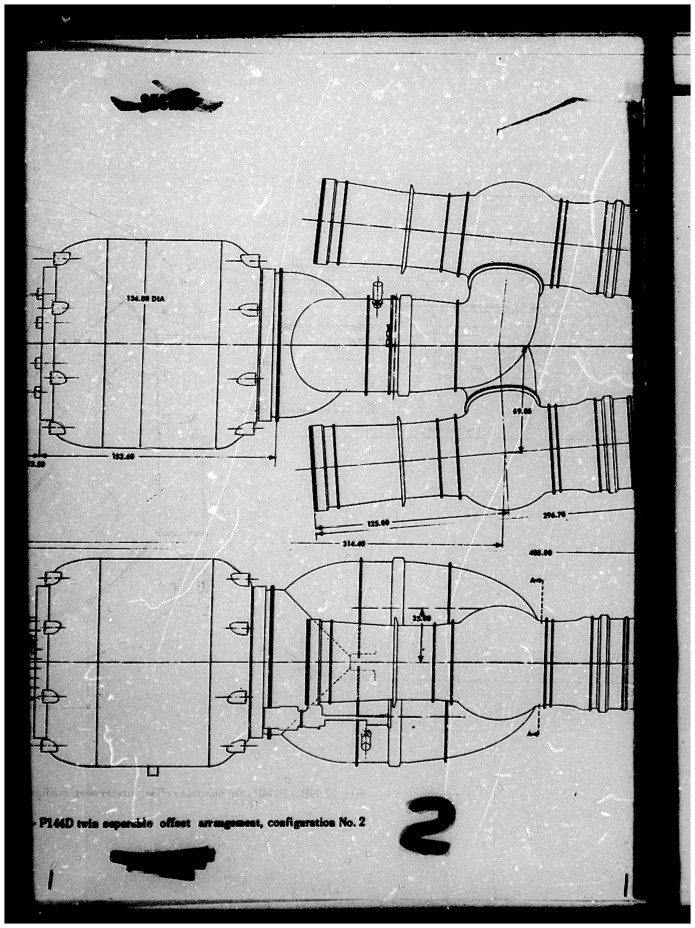

a-4 071nuke 232 focke wulf 013 saturn test 1 saturn test 3

The image quality still kinda blows compared to good scans taken directly off the documents, but this is about as good as it’ll get for microfiche.


 Posted by at 10:40 pm
Mar 282015

OK, right up front: What Freeman Dyson meant when he first described the concept now called a “Dyson Sphere” was that a civilization sufficiently advanced would build so many space habitats and solar power satellites that the cloud of ’em would blot out the star they orbit. Since the artificial structures would re-radiate the sunlight they receive as lower-energy infra-red (basic physics: if you want to maintain a stable temperature, total energy coming into the system needs to precisely balance total energy leaving), from the outside the Dyson sphere would appear dark… but in infra-red it’d be a great big glowing thing.

The idea of the vast cloud was quickly interpreted as a giant solid “bubble” around the star. This vast construct would absorb all of the suns output, and would result in a monumentally vast place to live. If the star was much like the sun, the Dyson Sphere would need to be at least one AU in radius to keep the temperature roughly Earthlike. But there are of course problems: primary of which is that no material known to science, theorized by science or even guessed at could withstand the stresses involved. Additionally, there’s the problem of gravity. There would be none on the inside of the shell, except for that produced by the star; if you stood on the inside of the shell, you’d fall “up” into the sun. If you stood on the outside of the shell, you’d still have the suns gravity pullign you down… but at 1 AU from the star, that gravity would be miniscule. The gravity added by the sphere itself would be vastly more miniscule, given that its mass would be a tiny fraction of the mass of the star. So to live in or under a Dyson sphere with a Sol-type sun, you’d need artificial gravity habitats, either rotating structures or whatever magical “gravity generators” you can scrape up.

But a new type of Dyson sphere has just been described by two fellers from the Department of Physics of Bogazici University, Bebek, Istanbul, Turkey. Instead of building the shell around a Sun-like star… build it around a white dwarf. The resulting shell will be far smaller if it is to be at the “habitable zone,” since white dwarfs are far less luminous than main sequence stars. But a side benefit here is that the reduced Dyson sphere radius (depending on the white dwarf… from about 2,000,000 km to a bit over 4,000,000 k) results in surface gravities right near Earth normal. So humans would be able to comfortably live on the surface, using energy intercepted within the sphere to provide illumination.

The down side is that the problems of physical stresses within the Dyson sphere, already bad with the 1-AU-type sphere, become much worse at the smaller radius and higher gravity loading. But presumably by the time humans are ready to tear planets apart to build shells around distant stars, we’ll have made important advances in the field of materials science.

Download the PDF file of the paper here:

Dyson Spheres around White Dwarfs

 Posted by at 9:01 pm
Mar 272015

I have made some adjustments to the Aerospace Projects Review Patreon campaign. The first is that I’ve reduced the number of rewards levels, which I was informed was previously Too Many. More importantly, I have added some new rewards: if you become a patron at $5 or more per month, you receive 10% off all future purchases of APR, US Aerospace Projects and downloadable Documents and Drawings. If you become a patron at $10 per month, you will receive 20% off any such purchases. Check of the APR Patreon here:

Additionally, the campaign has reached the point where the rewards are now *three* aerospace documents, one high-rez historical diagram and one all-new CAD diagram per month. This is in addition to the random “Extras” I throw in for $4 and up patrons. The most recent extra is a full-rez restoration of a three-view diagram of a 1978 McDonnell-Douglas concept for modifying Skylab to be serviced by the Space Shuttle. You can see a smaller-rez version of that here:

If you sign up now you will get the latest rewards which include:

  • A Bell Aircraft presentation on the SR-126 Bomber Missile, a manned ICBM predecessor of the Dyna Soar
  • A Lockheed paper on the history of the Polaris to Trident Fleet Ballistic Missile
  • A large poster illustrating the missiles and rockets of the Orbital Sciences Corporation
  • An all-new CAD diagram detailing the 10-meter Orion nuclear pulse propulsion vehicle designed by General Atomic for the USAF
 Posted by at 7:39 pm
Mar 262015

Before Skylab fell out of the sky, a lot of people wondered “why doesn’t NASA just send a Space Shuttle to rendezvous with it and use it as a space station.” In the end, Skylabs orbit decayed earlier than expected due to solar activity heating up the outer atmosphere, increasing drag on the station. Coupled with delays in getting the Shuttle up and running, time simply ran out.

But for a while, the idea of rescuing Skylab and making use of it in orbit made sense. McDonnell-Douglas, for example, turned in a proposal for modifying Skylab with a substantial upgrade in power by way of very large photovoltaic “wings.” This proposal was dated December, 1978, far too close to the July 1979 destruction of Skylab for the idea to have had any hope of implementation.

The McDonnell-Douglas plan would have added additional thermal shielding to the main workshop and a Spacelab module for additional volume. New thermal radiators and docking facilities for the Shuttle would also have been added.

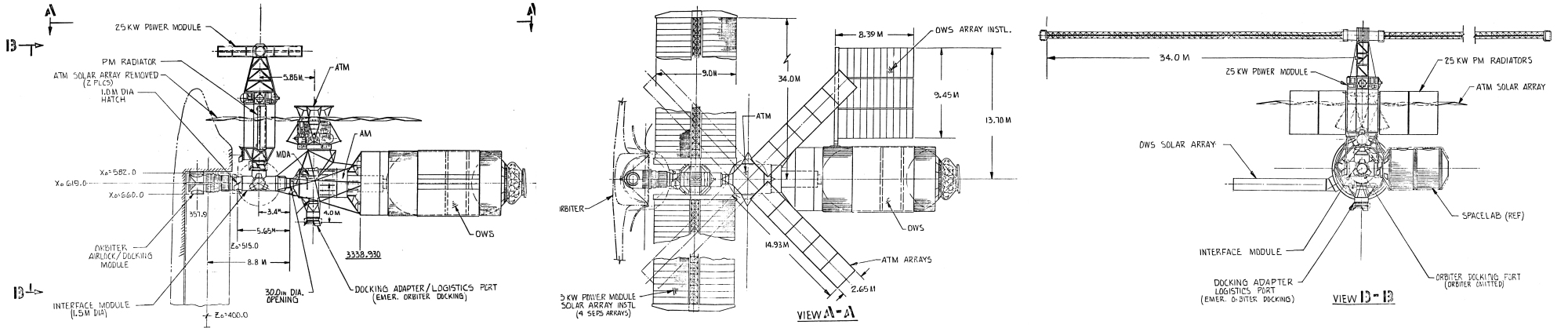

Shuttle + skylab diagram small

The full-rez version of this diagram has been made available to APR Patreon patrons at the $4 level.

 Posted by at 4:17 pm
Mar 242015

An artists rendering of a solar power satellite under construction. This idea was popular for a while in the mid/late 1970s during the energy crisis, and generally called for satellites generally compared in size to Manhattan island.

This image was apparently created by NASA in 1976.  The thinking at the time was that these structures could certainly be built within the 1990’s; I often wonder at what the people who were working on them would have thought at the time had they somehow found out that, nearly 40 years later, precisely zero effort would have been made to see SPS come to pass. A higher-rez version is available HERE.

sps construction

 Posted by at 12:34 am
Mar 212015

Eugen Sanger was an Austrian engineer from the early/mid 20th century. While largely forgotten by the vast majority of everybody today, he is remembered, at least in aerospace circles, as the originator of the Silbervogel (“Silverbird”) rocket-powered suborbital bomber. This work was performed during WWII for the German government, and included some substantial rocket testing; the odd thing – though wholly in character for the Nazi regime – was that this work was entirely separate from the development work  on the V-2 rocket. Had the efforts been brought together, chances are that German rocketry would have been further advanced by the end of the war.

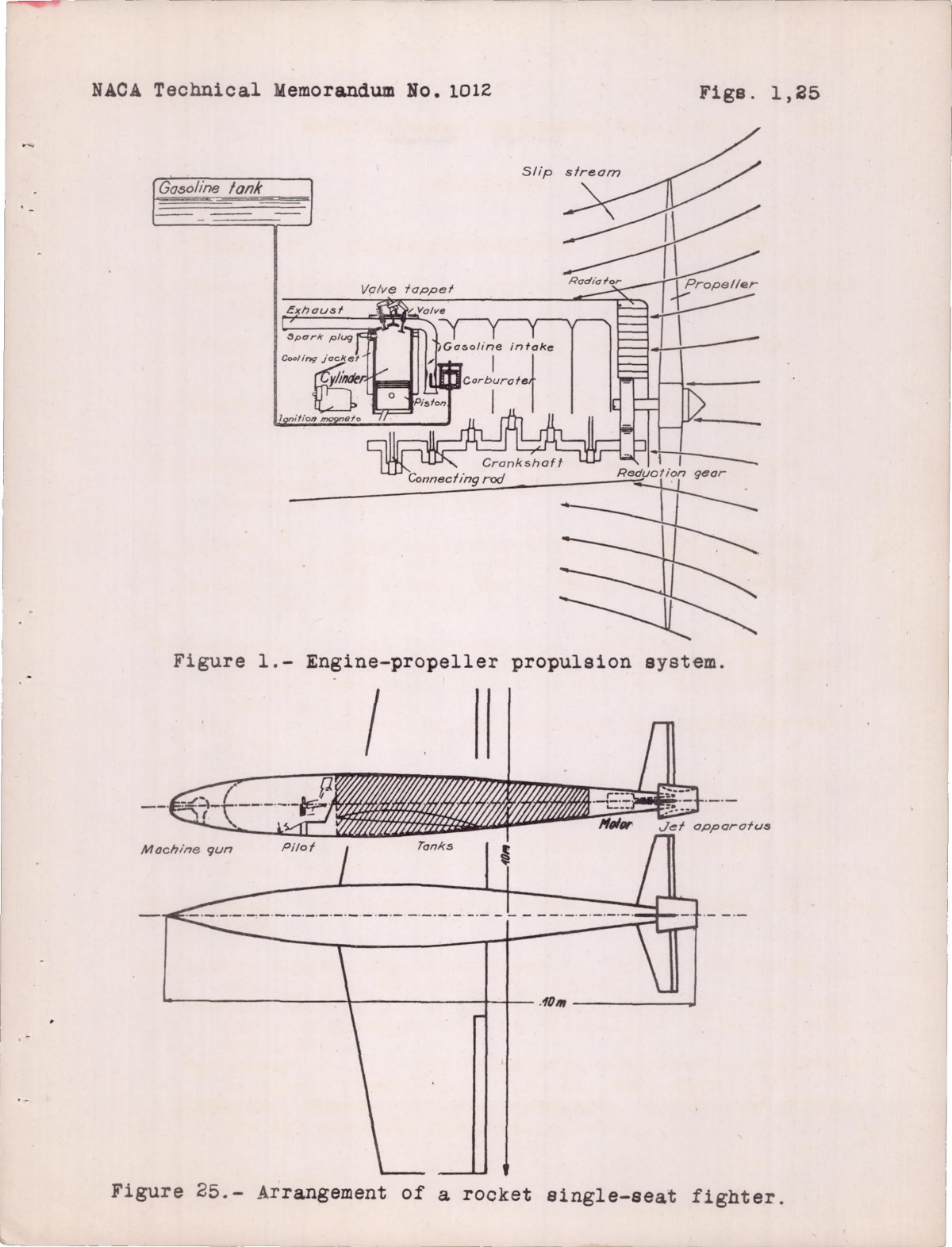

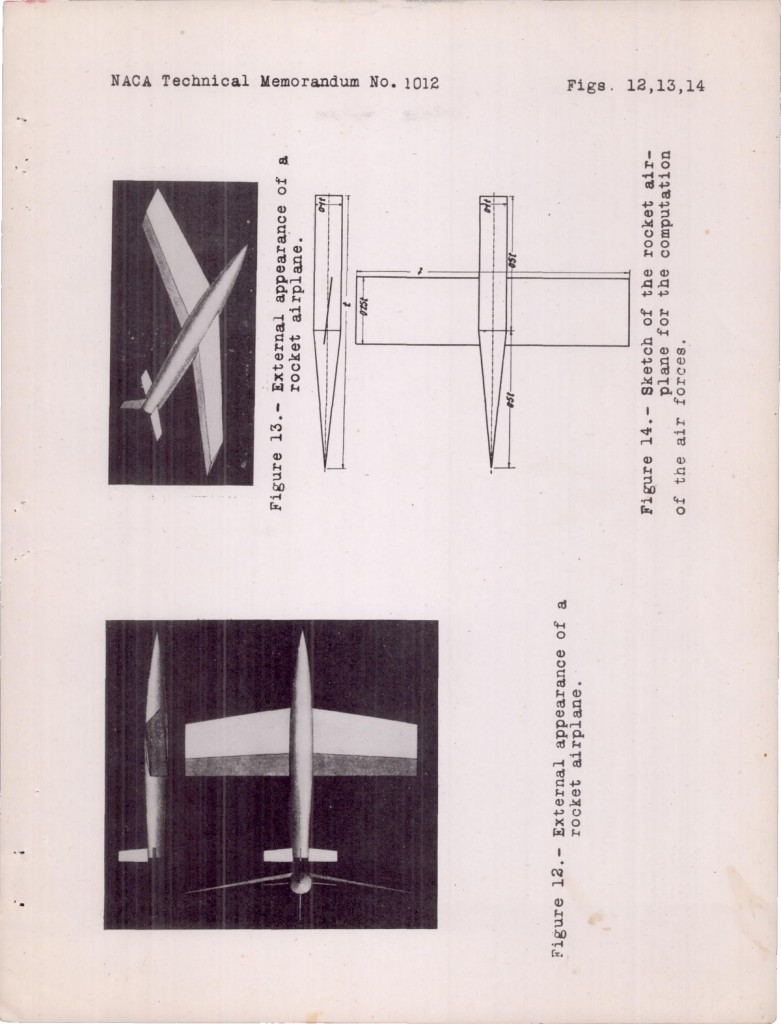

In 1934, Sanger published  a paper on advancement in liquid propellant rocketry, work that would later feed into his Silverbird effort. “Recent Results in Rocket Flight Technique” not only reported upon work done in developing a gas-oil and liquid oxygen burning rocket engine, but also proposals for manned rocket powered aircraft. The paper was originally written in German and granted the catchy title “Neuer Ergebnisse der Raketenflugtechnik,” but it was translated into English by the National Advisory Committee for Aeronautics in April of 1942. Why was it was translated just then? Depending on the speed of the translators, the work may have begun just after the American entry into WWII, which might indicate a bit more interest in German rocketry in certain portions of the US Government than has generally been understood.

The abstract & such for the report can be seen on the NASA Technical Report Server HERE. Or it can be directly downloaded as a 33 meg PDF HERE.

Note: my original plan for this writeup was to include verbiage along the lines of “Sorry that the two-bit black-and-white scan quality is so poor, but whatcha gonna do.” But in looking it up, I found that the original bleah-quality scan has been replaced with a higher quality full-color scan. This is a good thing!

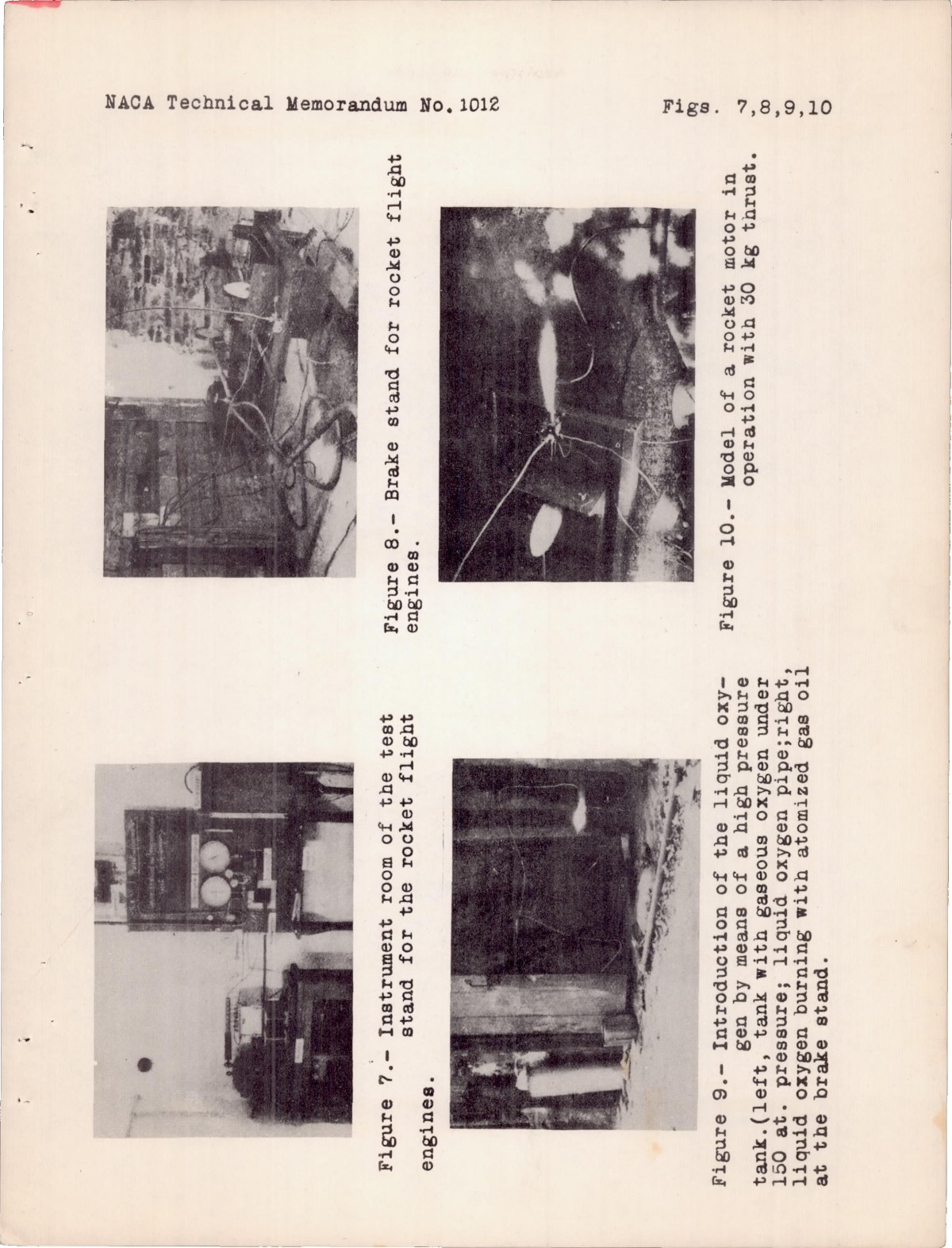

sanger1 sanger2 sanger3


Much more aerospace stuff is available via the APR Patreon.


 Posted by at 7:46 pm
Mar 152015

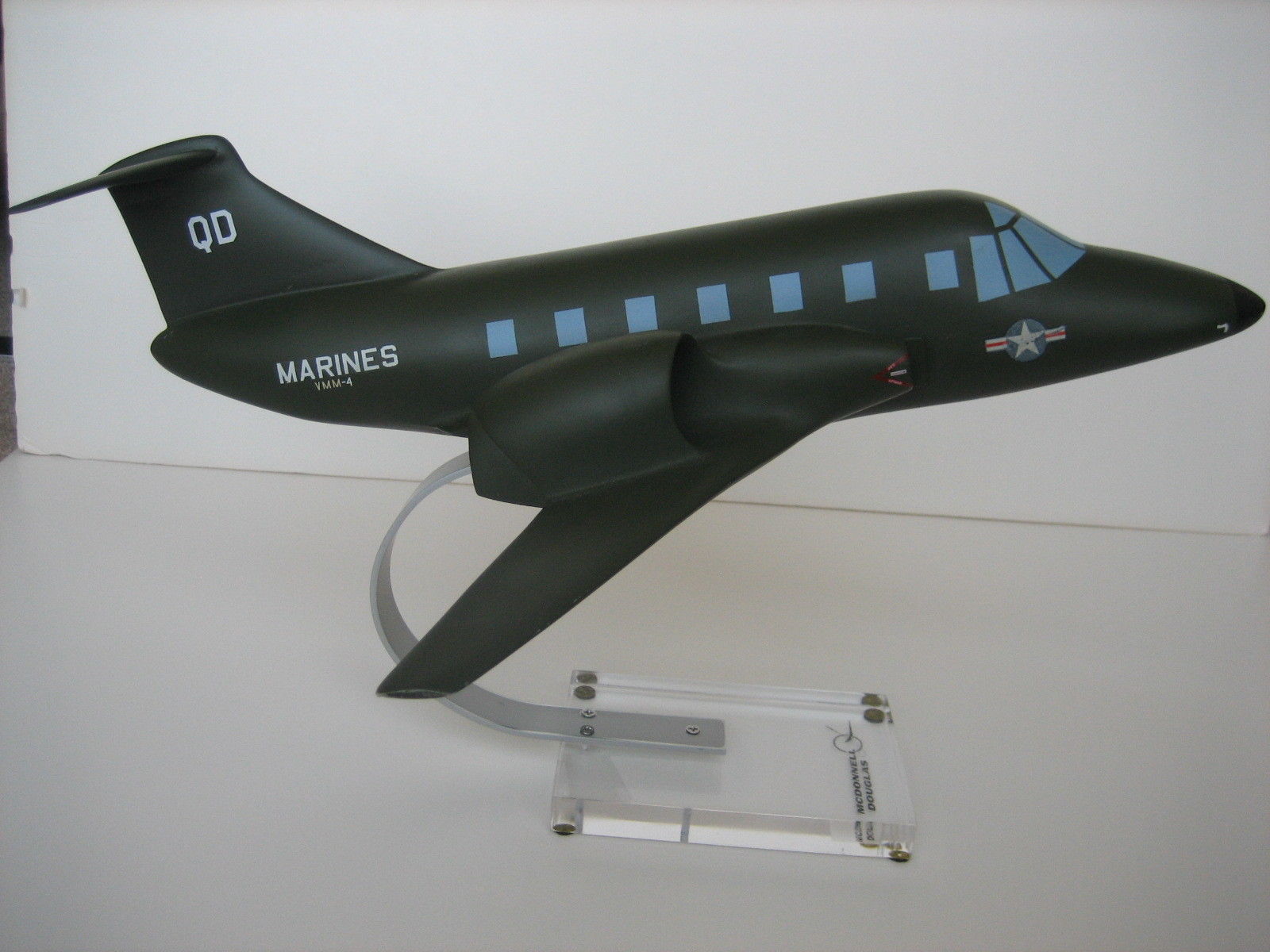

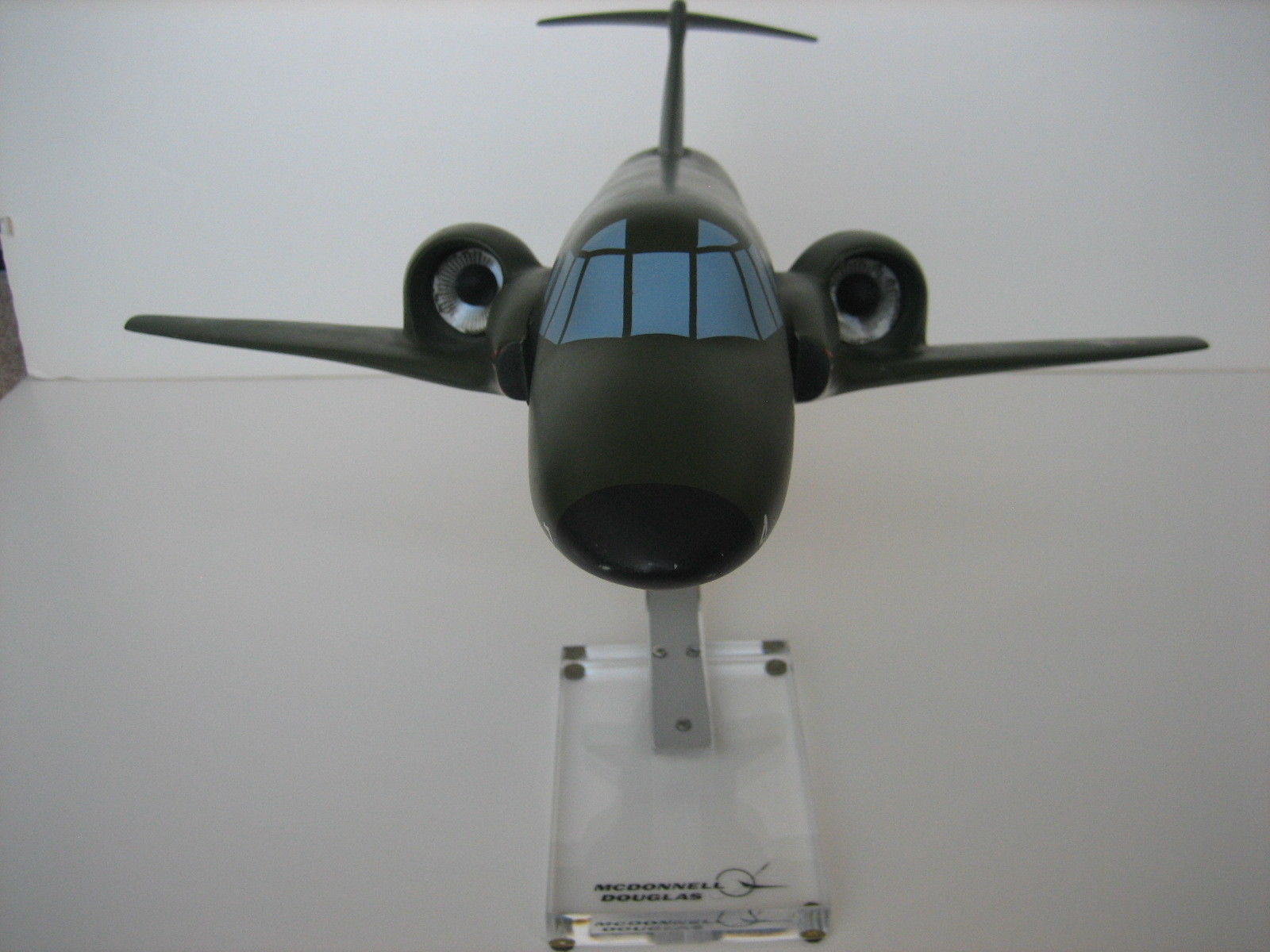

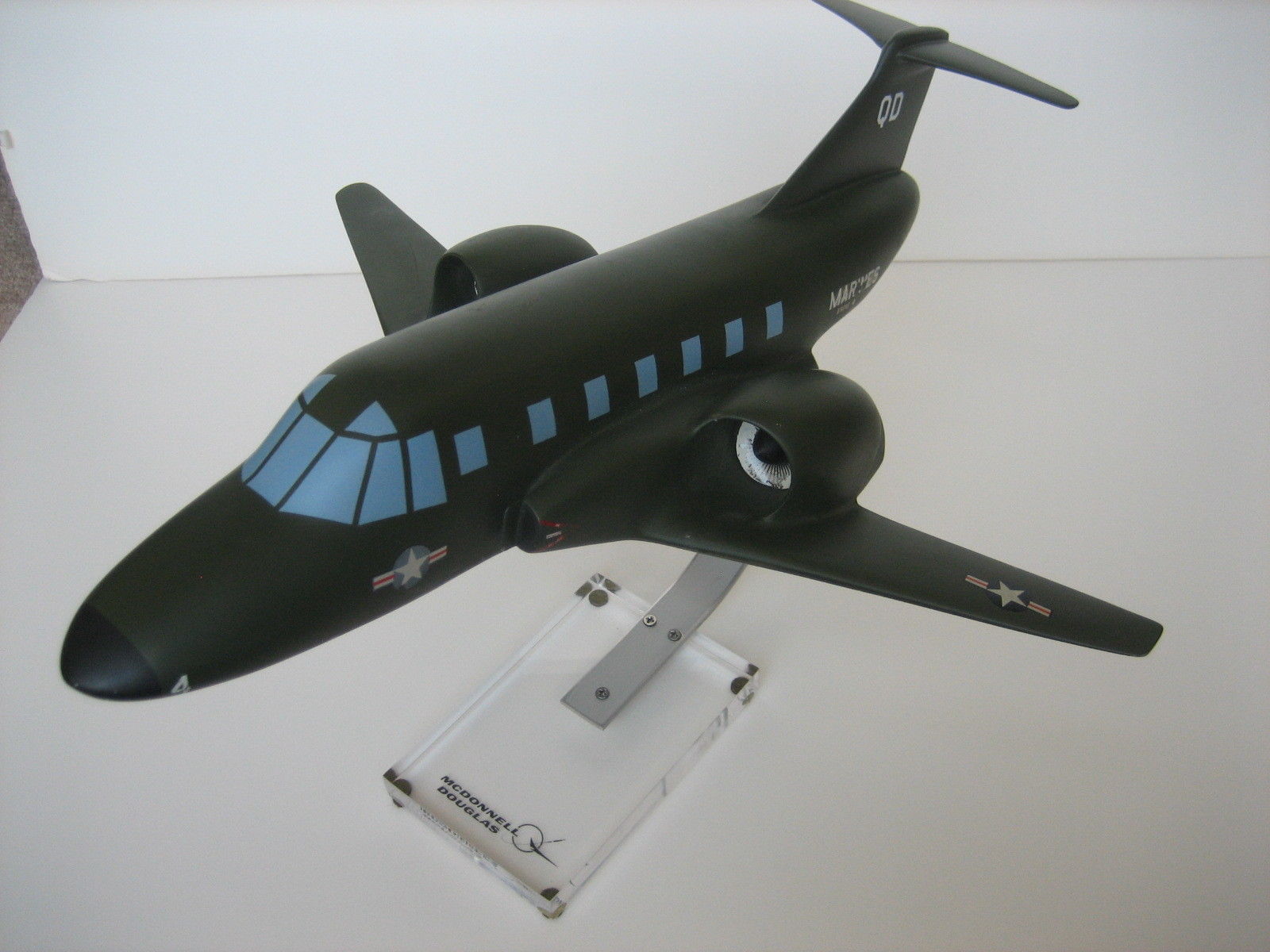

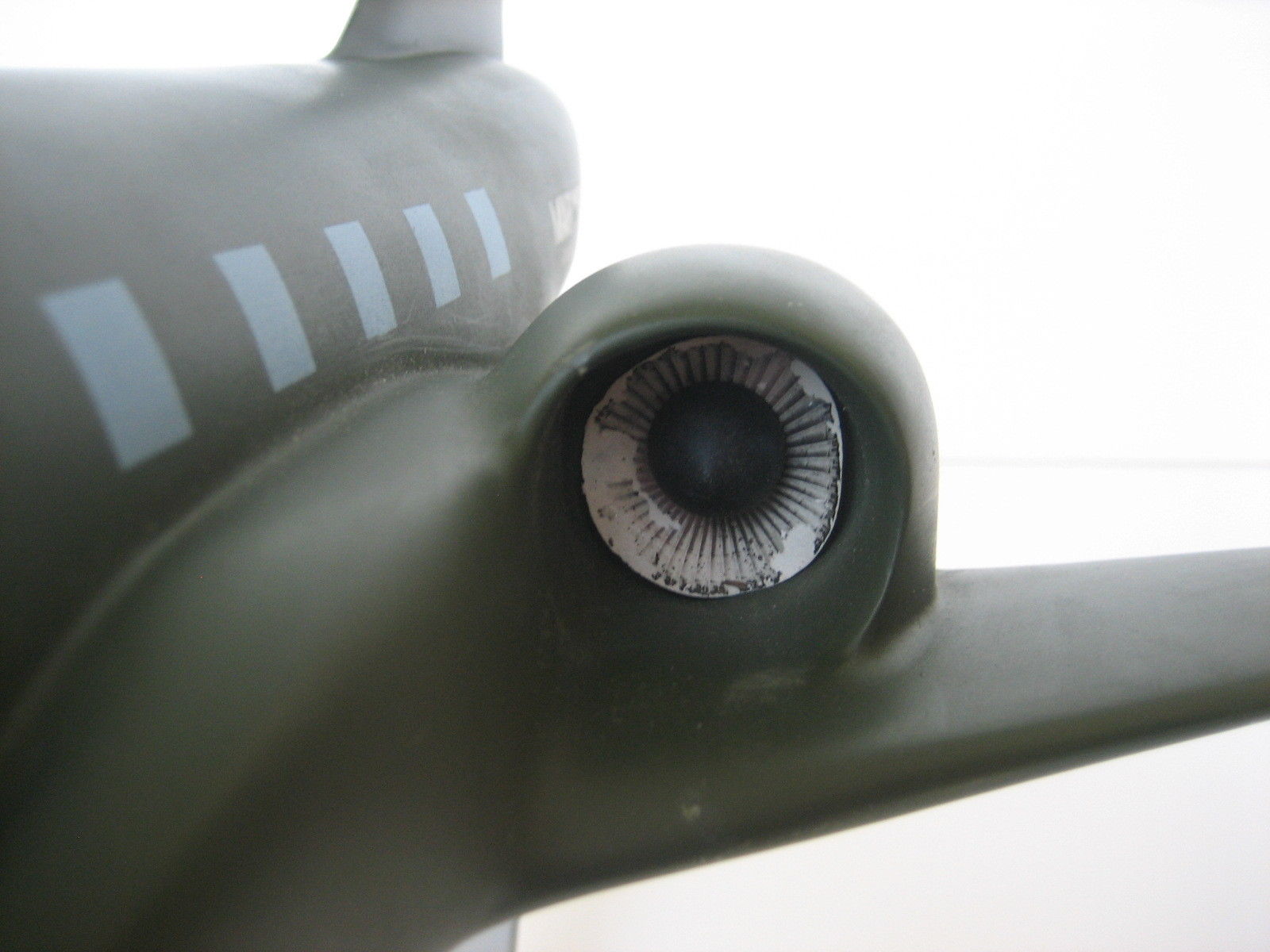

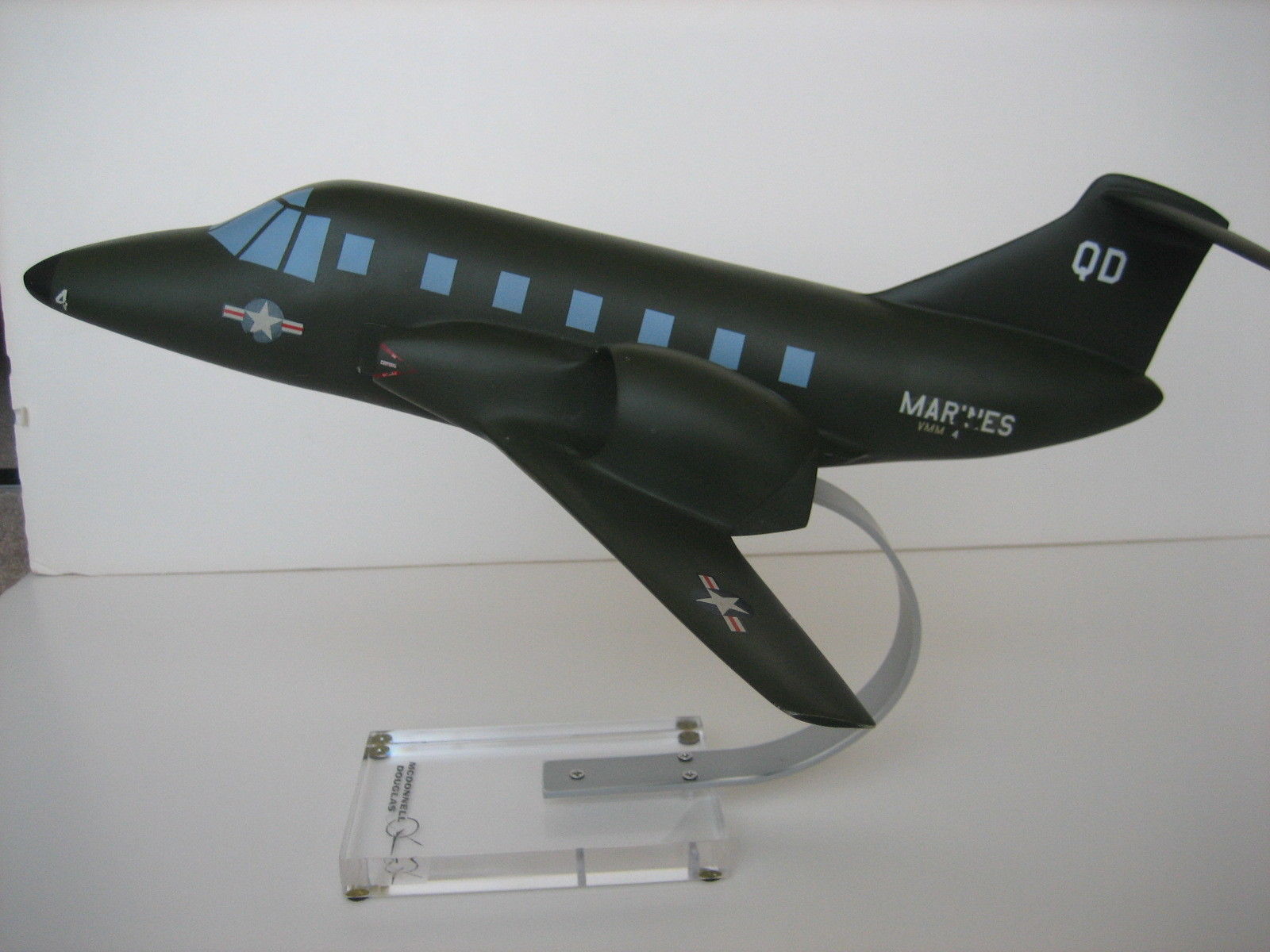

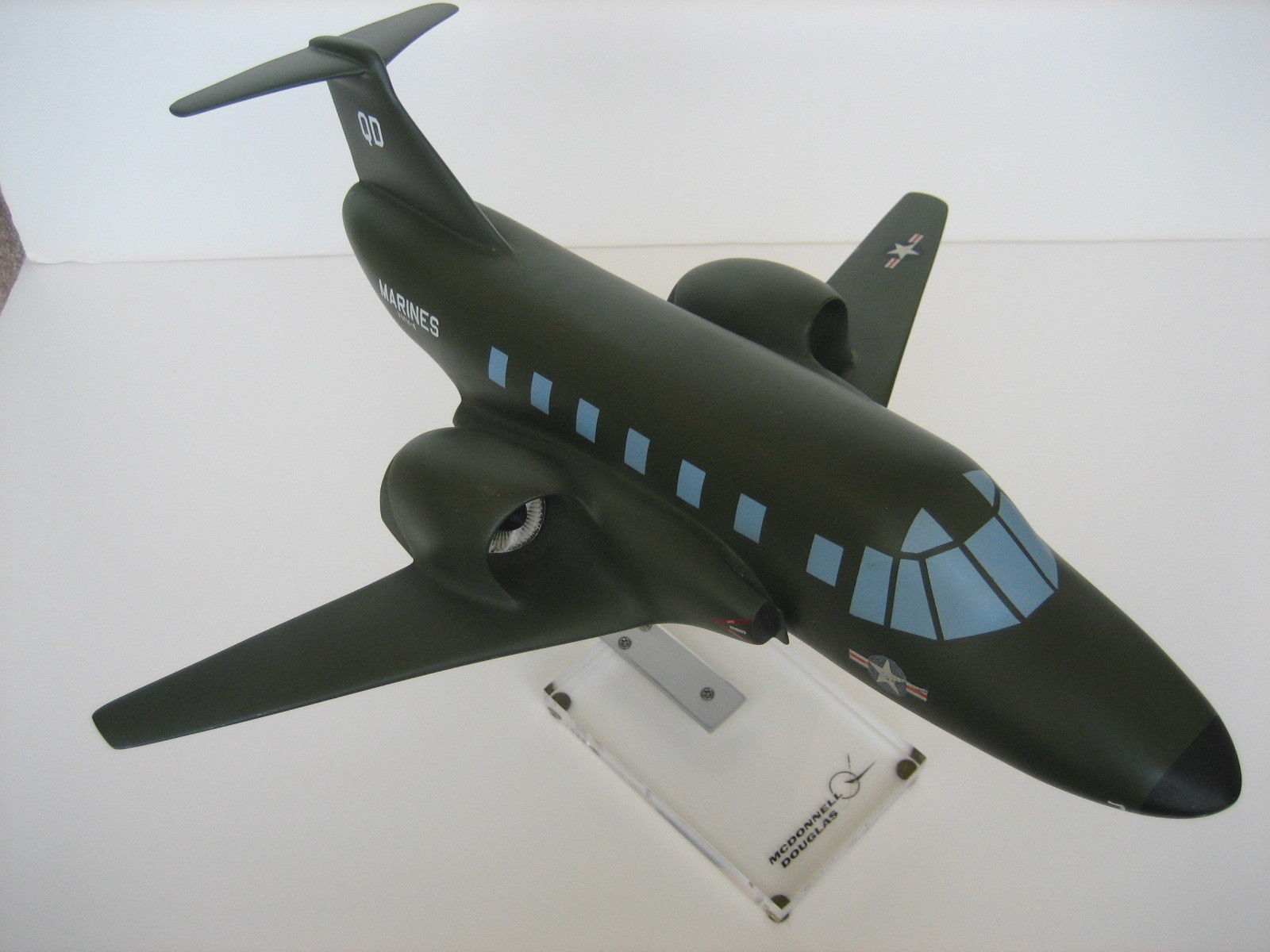

Another ebay auction presents a display model of a transport version of the McD Model 260 VTOL from the 1970’s:

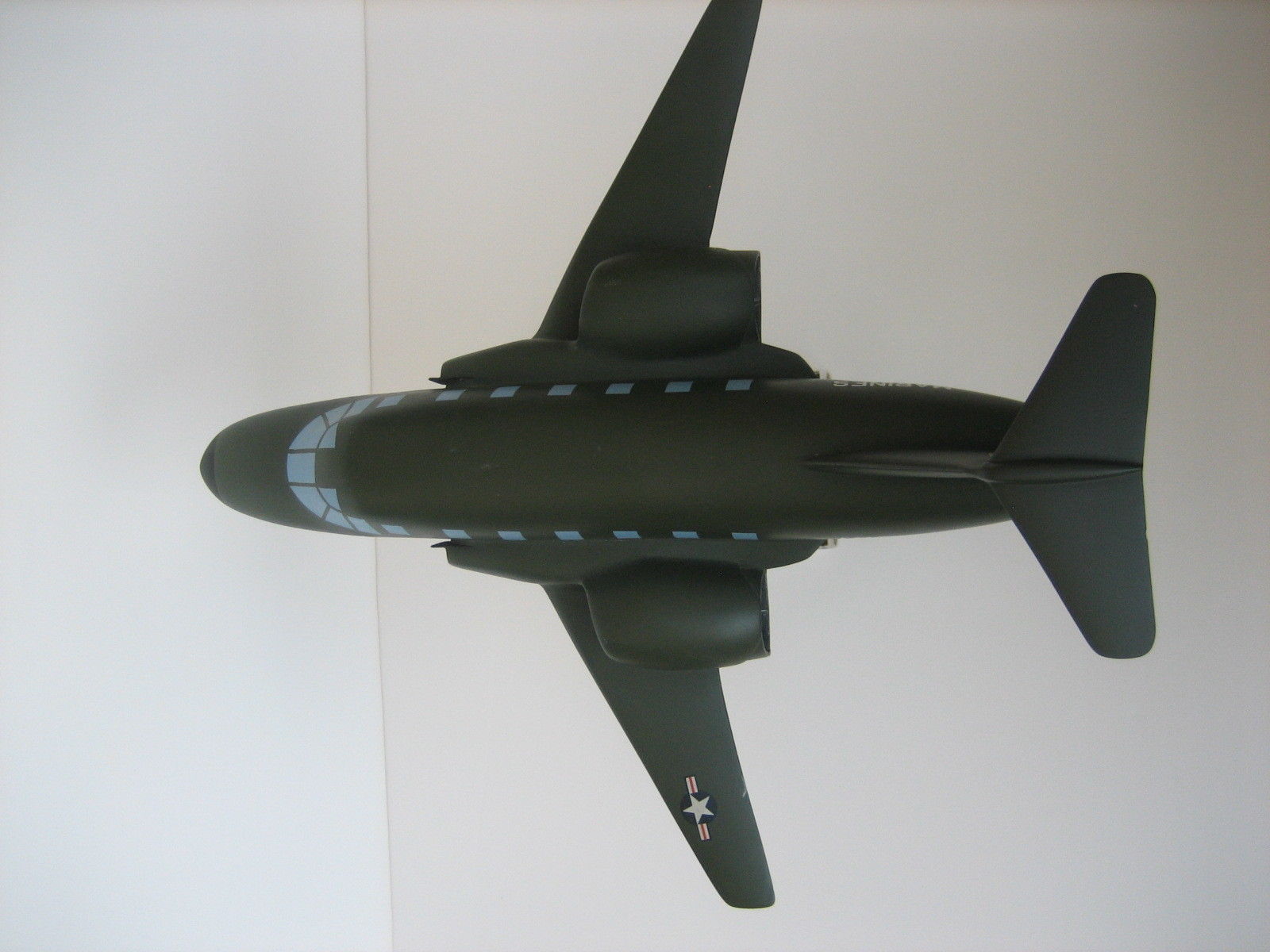

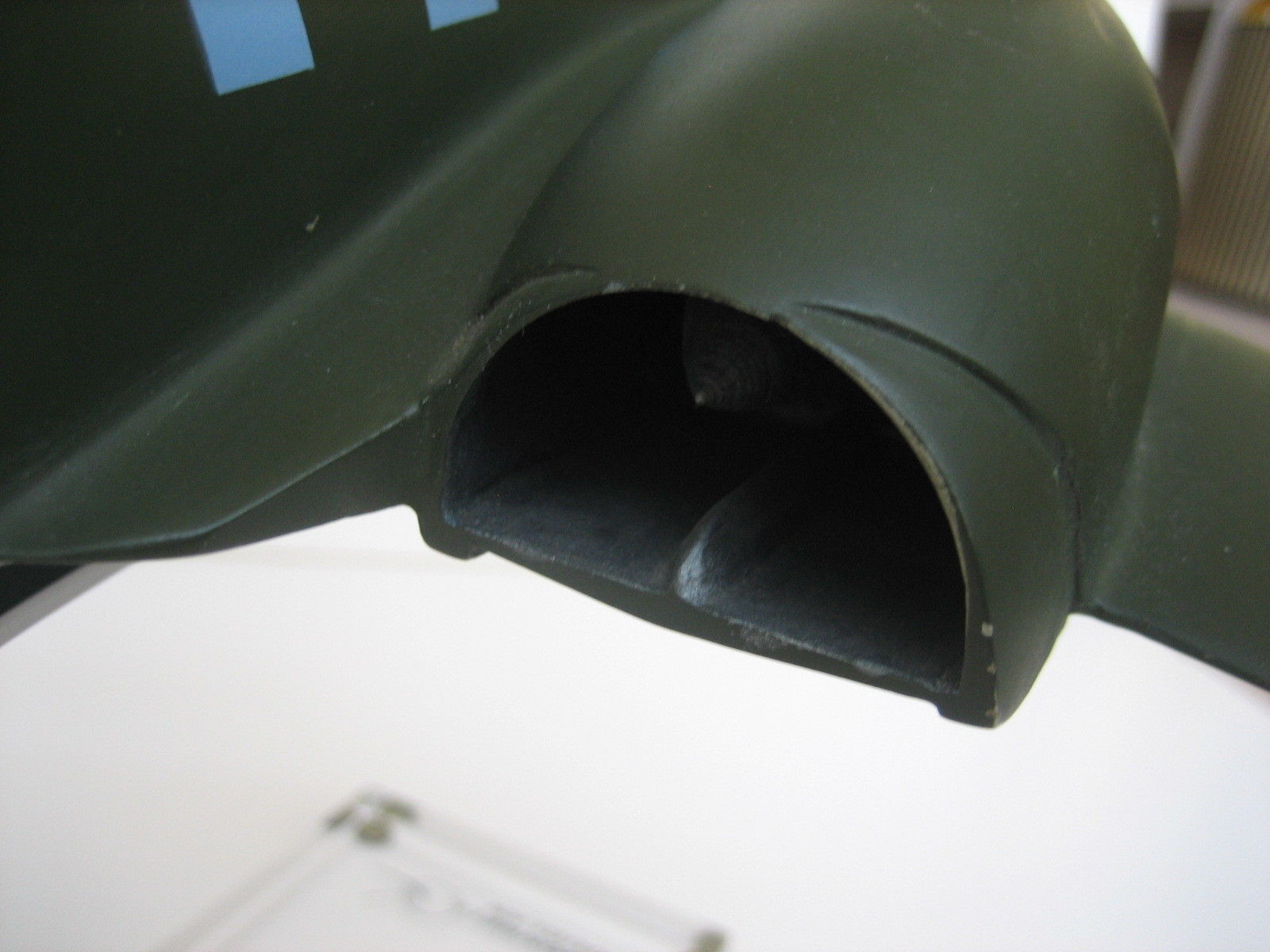

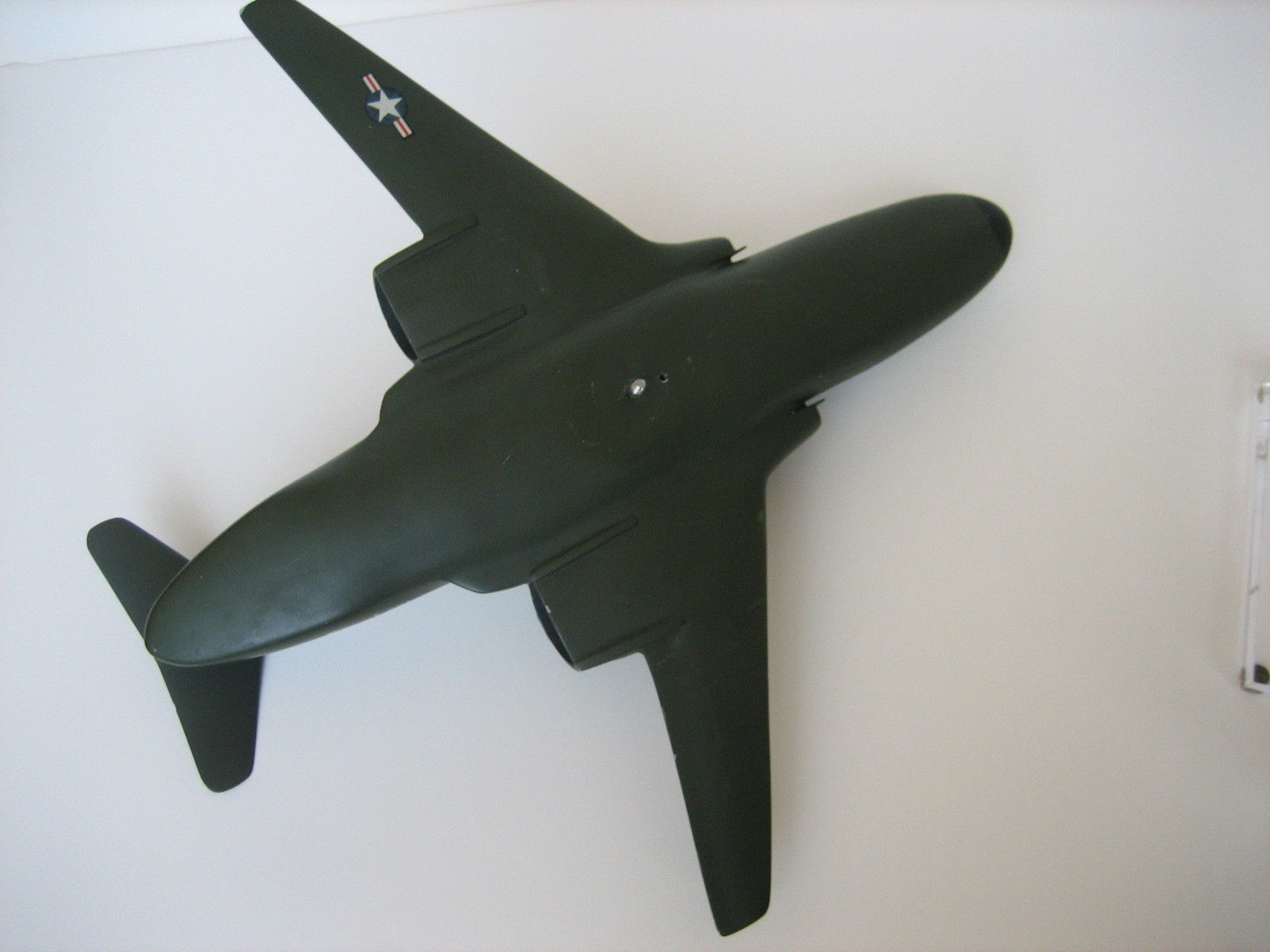

s-l1600a s-l1600b s-l1600c s-l1600d s-l1600e s-l1600f s-l1600g s-l1600h s-l1600i s-l1600j

A great many Model 260 variants were designed, all based on the same basic concept: an aircraft shaped much like a corporate jet, featuring a pair of turbofan engines of very high bypass ratio located in shrouds which could unfold to direct the thrust downward for vertical lift and hover. Unlike the Rockwell XFV-12, the Model 260 could probably have worked, but it was never built.

 Posted by at 2:57 pm
Mar 122015

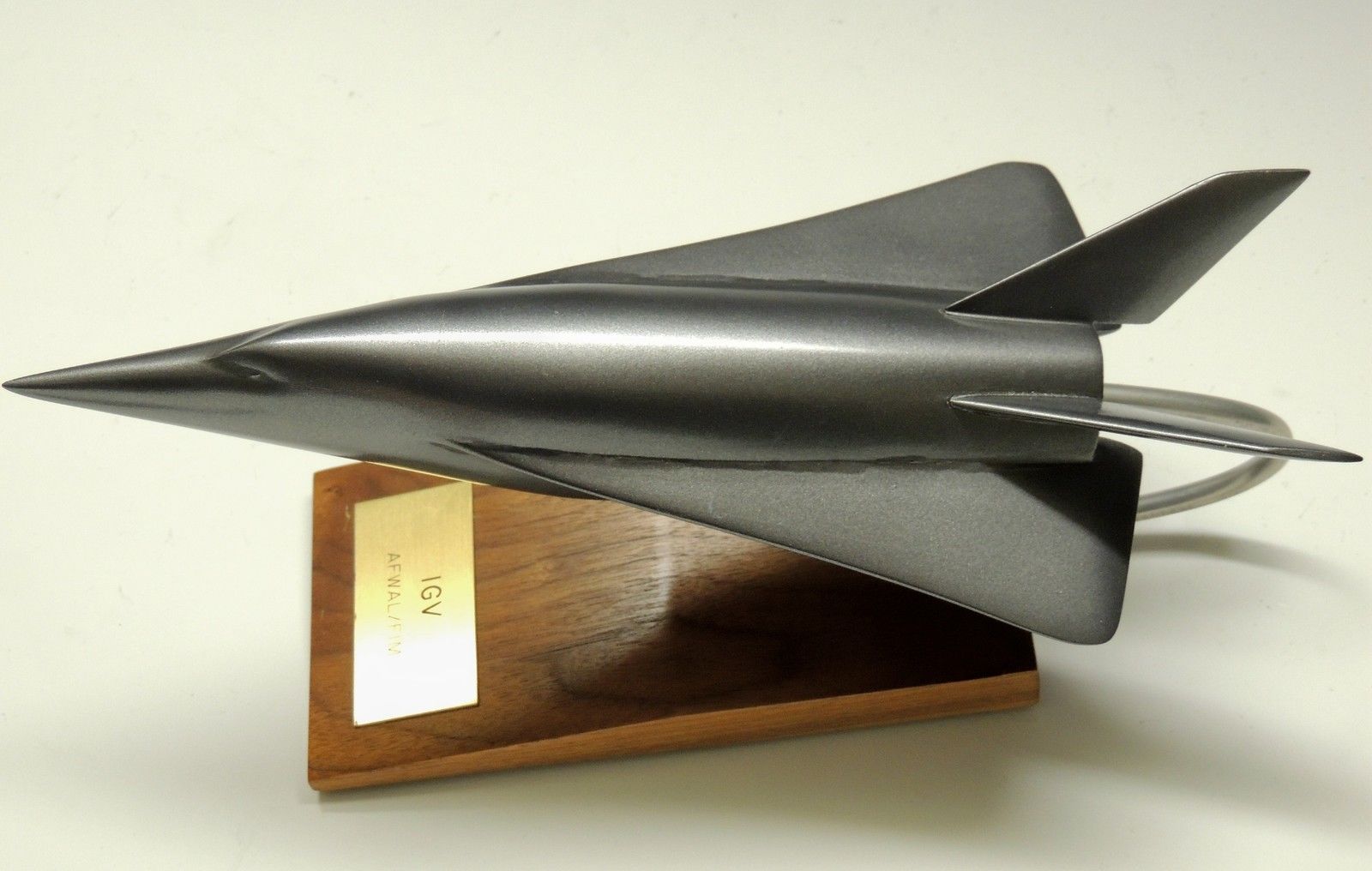

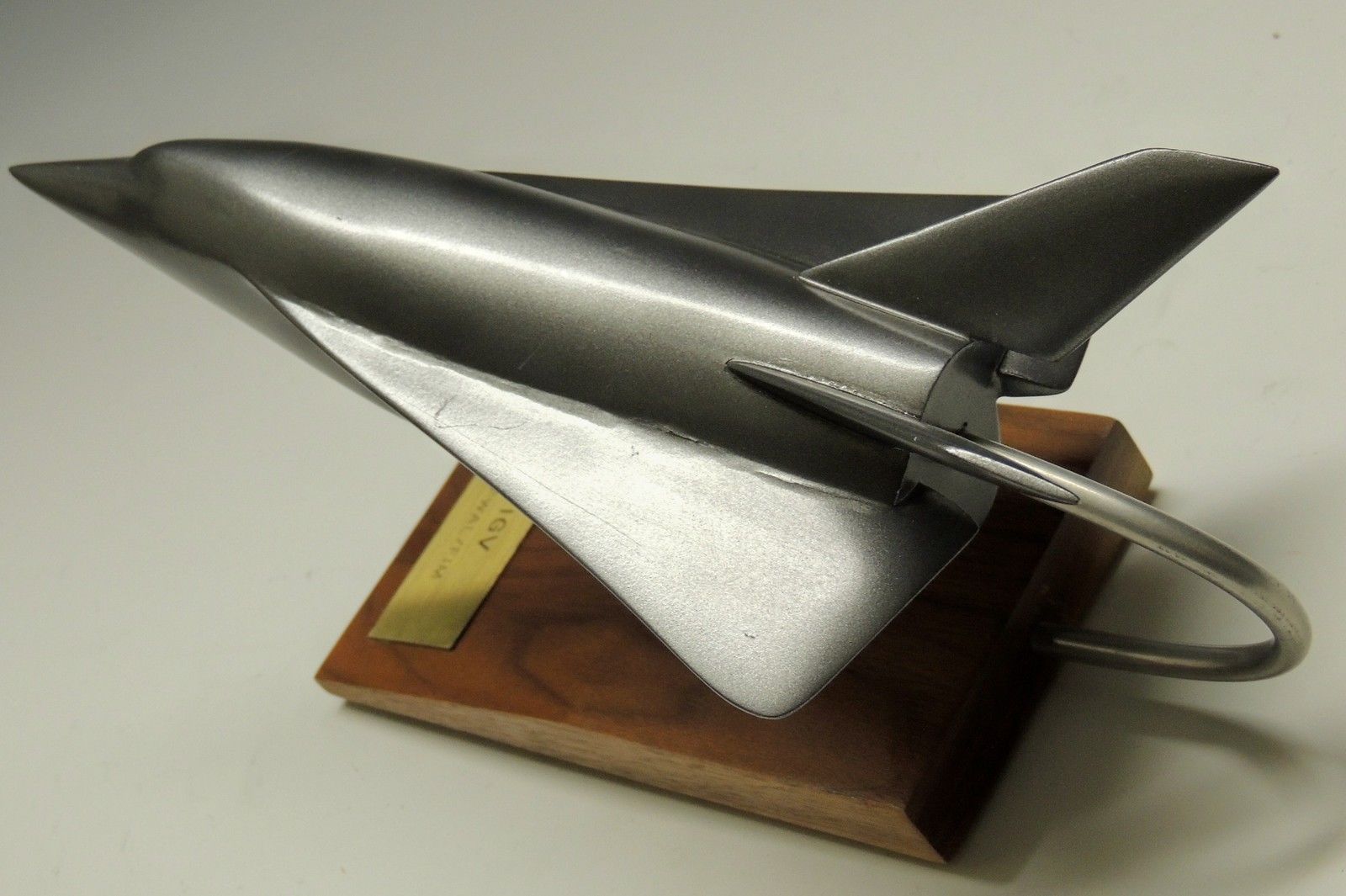

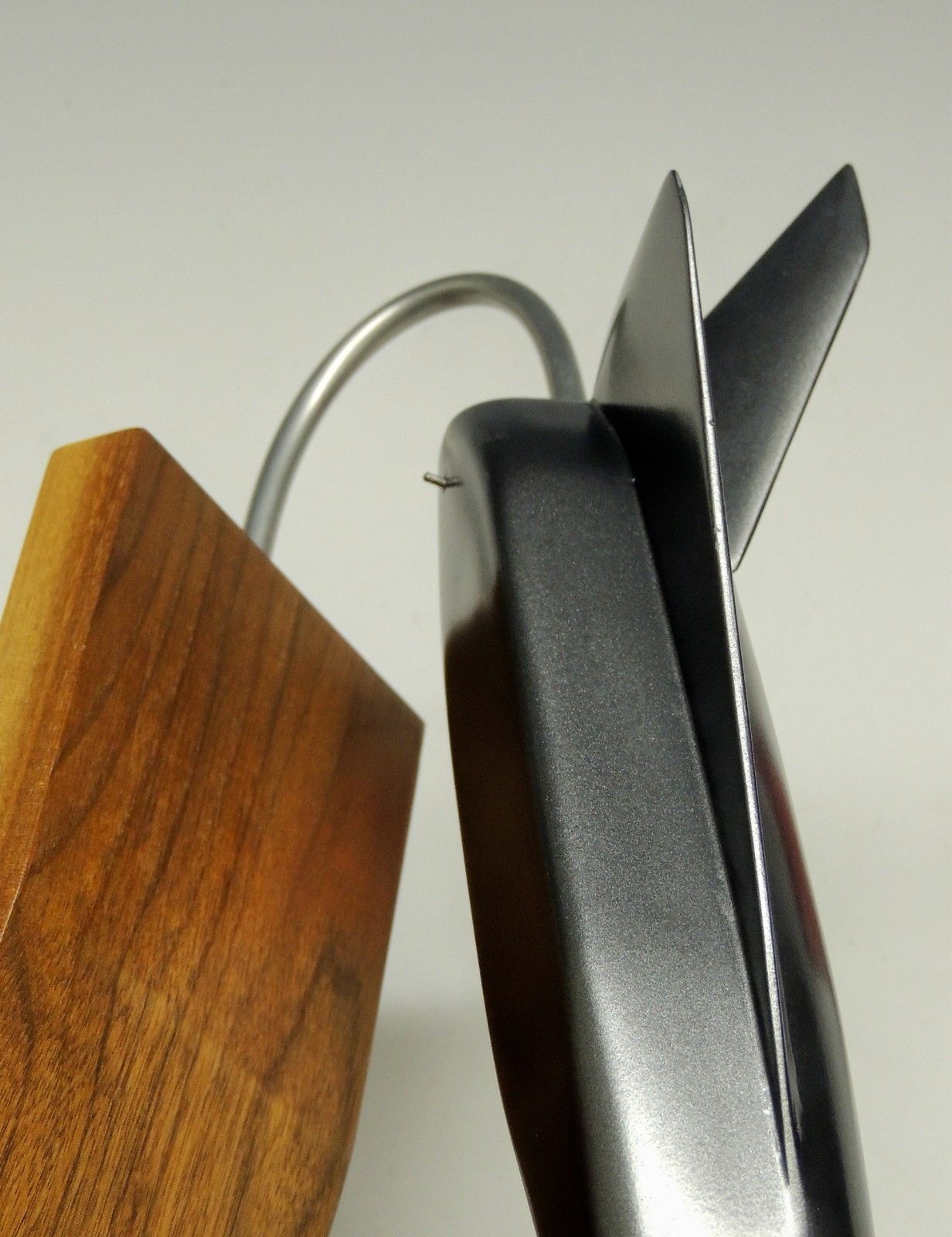

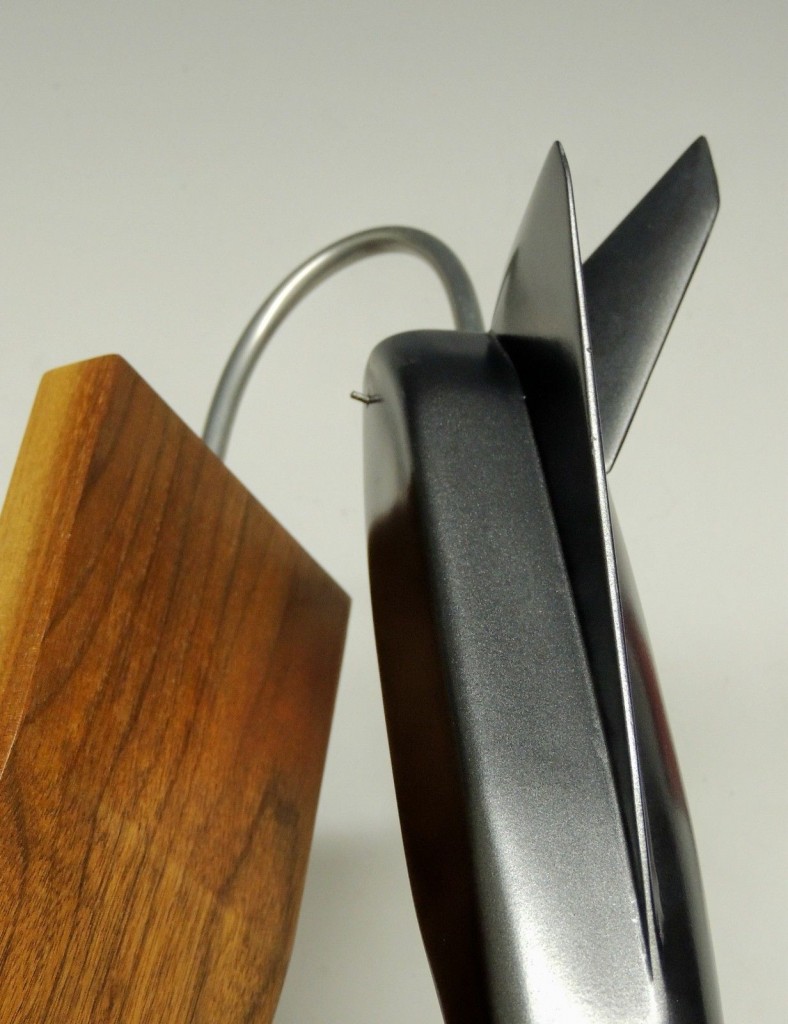

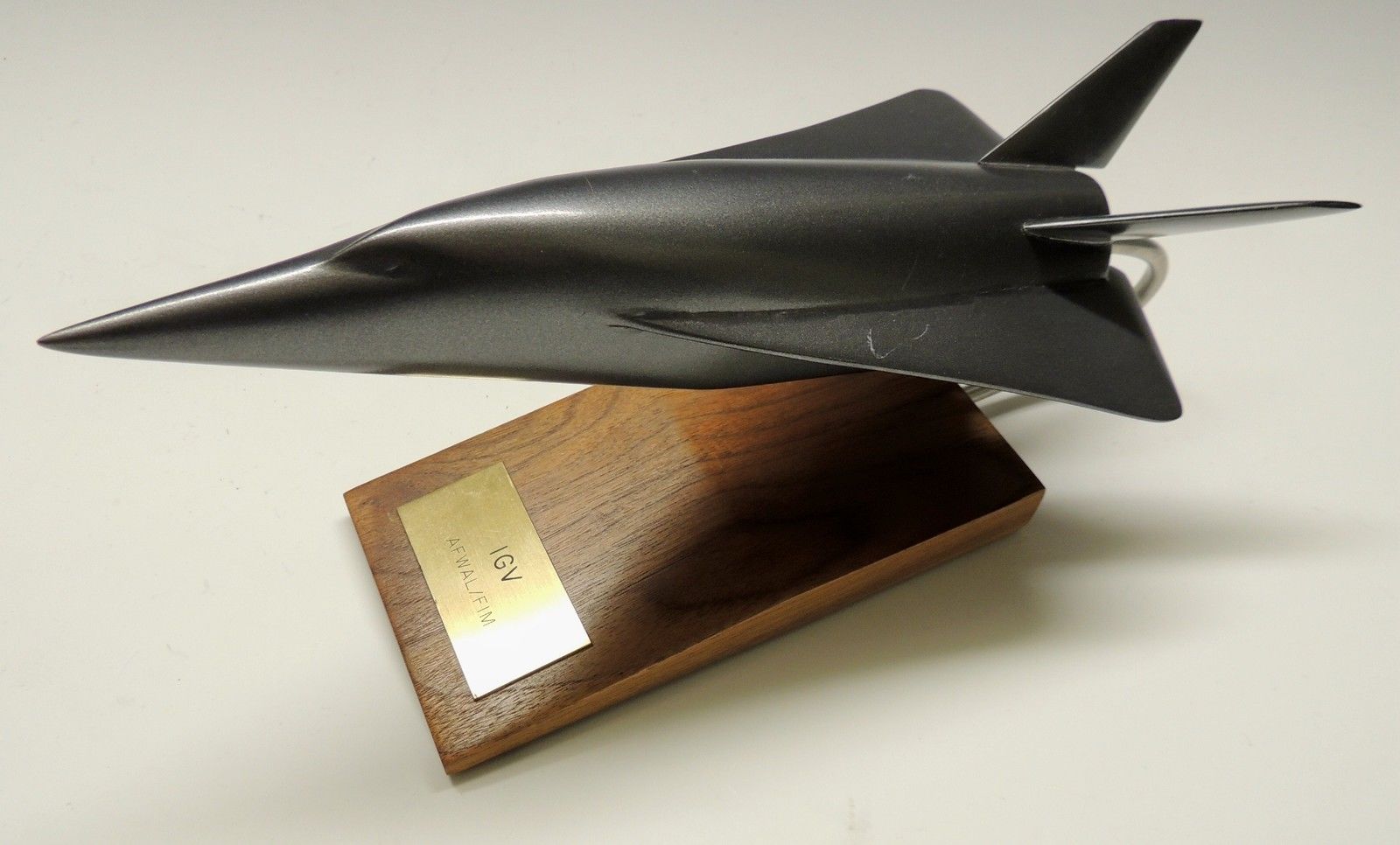

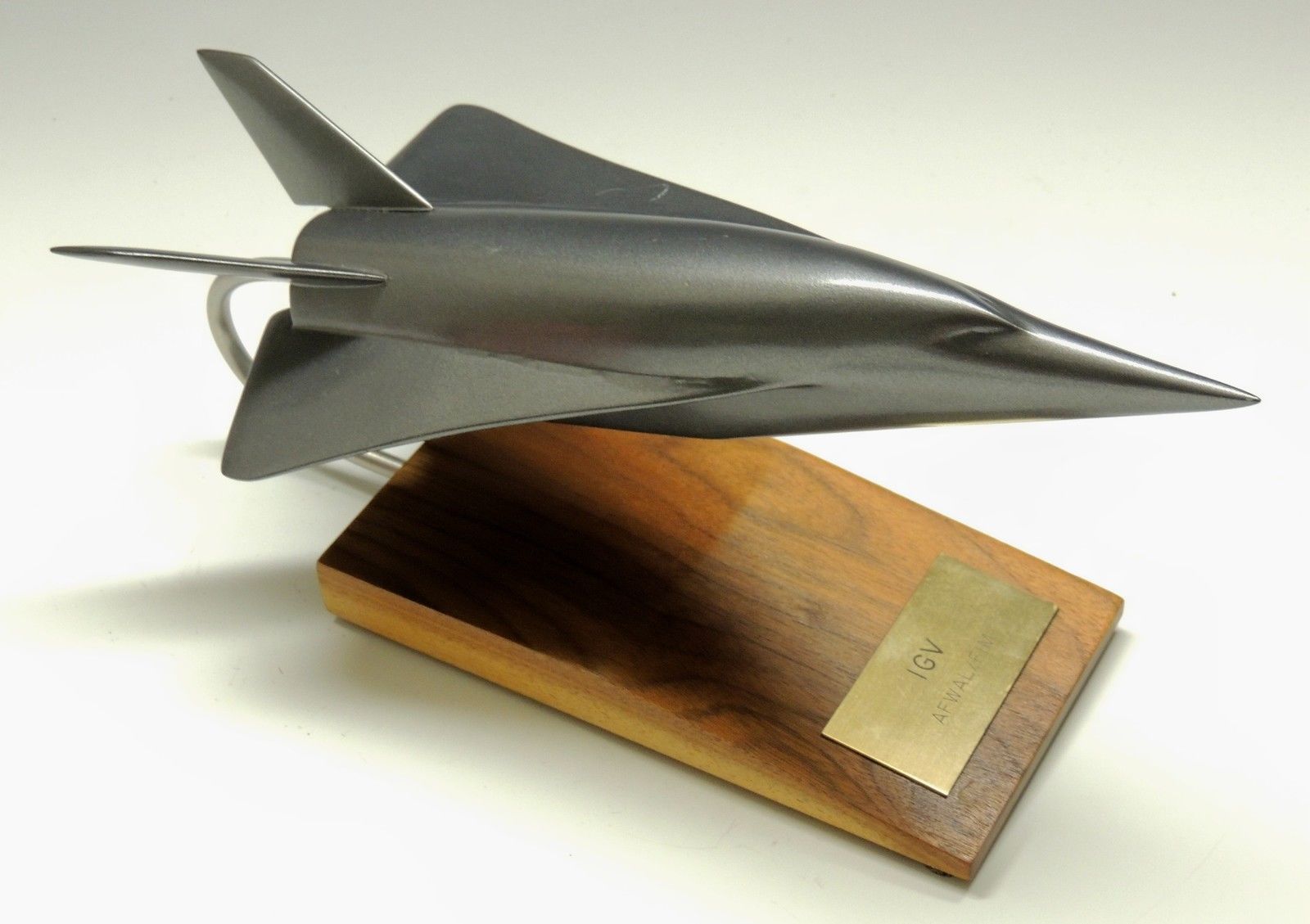

A recent ebay auction was for a display model of the early 1970’s McDonnell-Douglas Incremental Growth Vehicle. This was a proposed manned hypersonic “X-Plane,” designed from the ground up to be capable of having major components replaced. This would allow a simple rocket vehicle to be tested first, and then the fuselage could stretch, or new rocket engines tested, or new wings, or new wings, a fuselage stretch and airbreathing engines, whatever the experiment called for.

s-l1600-4 s-l1600-2 s-l1600-3 s-l1600


 Posted by at 11:27 pm
Mar 122015

I have a batch of new large format cyanotype blueprints coming along (the files for the transparencies are at the print shop now). Weather permitting, I should start producing these in a week or so… but the question is: how many to print up? I’m not yet taking orders, but I am trying to gauge interest. So if you see something here you think you’ll want, please let me know via either comment or email. Remember that as well as the cost of the prints there will also be postage… $10 in the US, $18 elsewhere, regardless of how many prints are ordered.

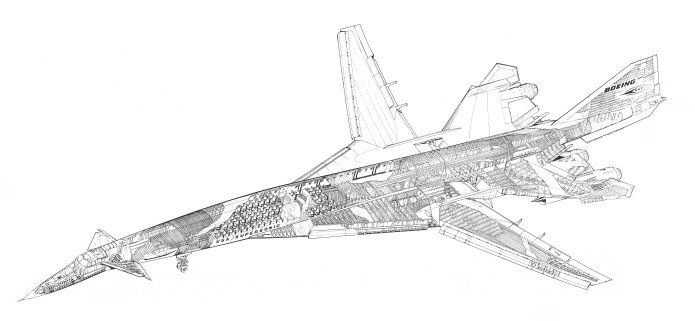

2707-200 Supersonic Transport, 48 inches by 22: $50

2707-200 cutaway 48x22

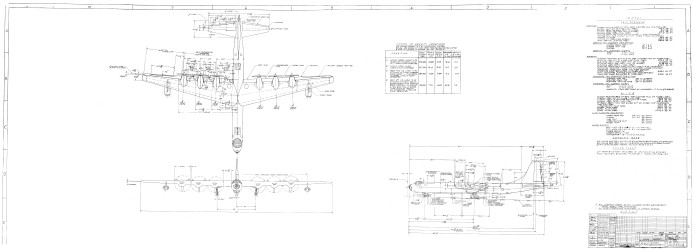

B-36D, 61 inches by 22: $60

B-36d 61x11

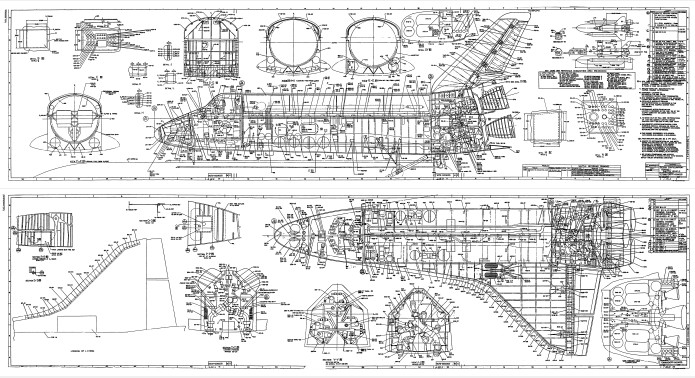

Shuttle diagrams, set A: 41 inches by 11 (two sheets): $50

shuttle setA 41x11

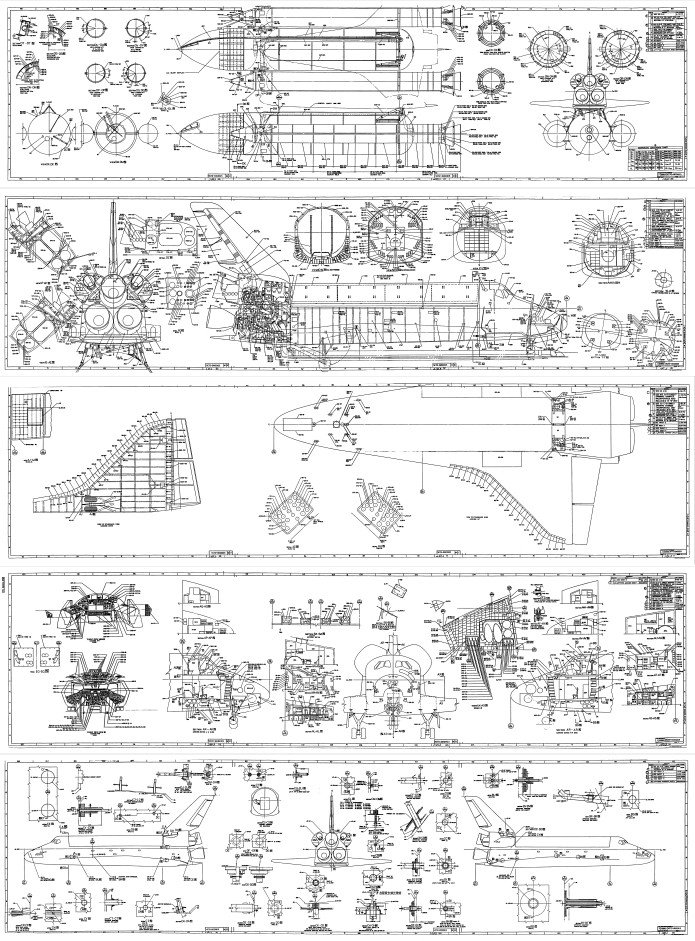

Shuttle diagrams, set B: 41 inches by 11 (five sheets): $125

shuttle setB 41x11

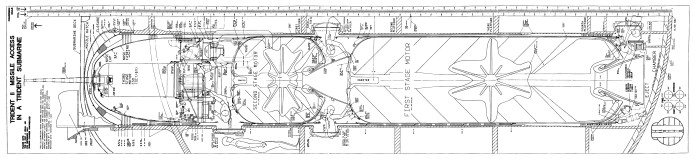

Trident SLBM: 49X11, $25
