Oct 192017


A rare piece of color art depicting an early Dyna Soar being dropped from a B-52. The Dyna Soar is equipped with two rocket engines used to boost it to higher altitude and higher speed (supersonic, though not very supersonic… think the test flights of the M2-F3 and the HL-10). Note that this shows the Dyna Soar having been tucked into a modified bomb bay in the B-52’s fuselage; planning¬† would soon move the Dyna Soar to under the wing, using the same attachment point used by the B-52 to carry the X-15 and the lifting bodies.



 Posted by at 11:59 am
Oct 122017

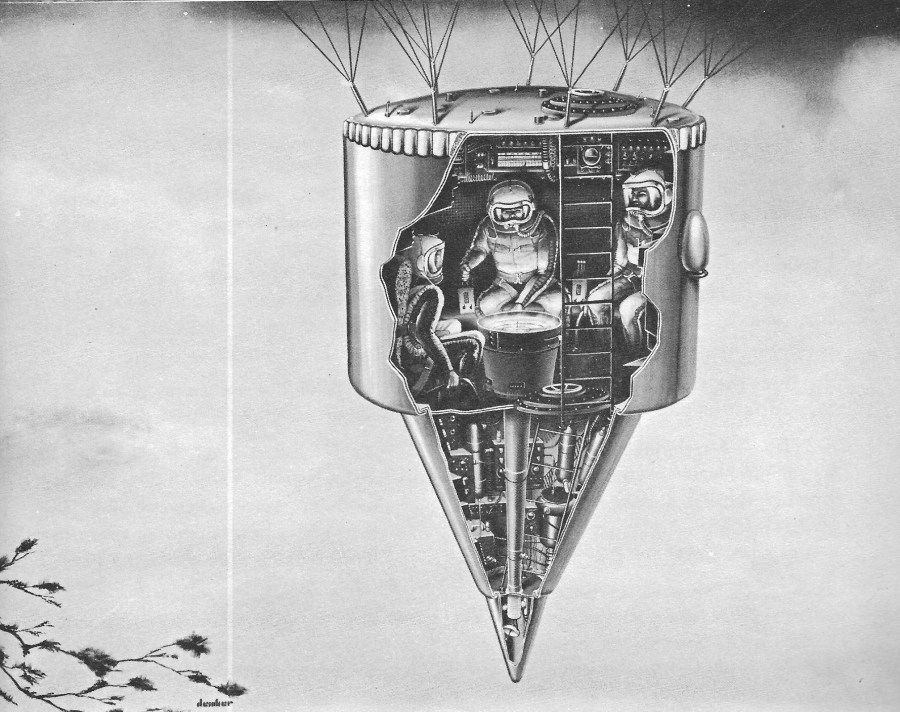

An apparently pre-Mercury “space capsule” design from Rocketdyne. I am somewhat dubious, though… I suspect it might be less “space capsule” than “high altitude capsule.” Nothing about it screams “re-entry vehicle;” rather it look like something that might have been hauled to the edge of space by a large balloon. The pressure suits worn by the occupants look like something to be worn by a U-2 pilot; there sure is a whole lot of wasted volume in there and it would be odd for a capsule meant to operate in zero-g to have a ladder in it.

 Posted by at 12:07 am
Oct 092017


Posted to a NASA Flickr page is this illustration of a 1984 space station concept:

This is the Johnson Space Center’s 1984 “roof” concept for a space station. The “roof” was covered with solar array cells, that were to generate about 120 kilowatts of electricity. Within the V-shaped beams there would be five modules for living, laboratory space, and external areas for instruments and other facilities.

This would probably be a very heavy station for the volume and usable surface area provided. However, once that truss structure is in place, it seems like it would be possible to keep adding on to it without overly stressing the structure, with the possible result of a very capable station. It should also be possible to keep tacking on new truss elements.

The design would necessarily keep most of the station elements shadowed by the solar arrays.

 Posted by at 5:31 pm
Oct 082017

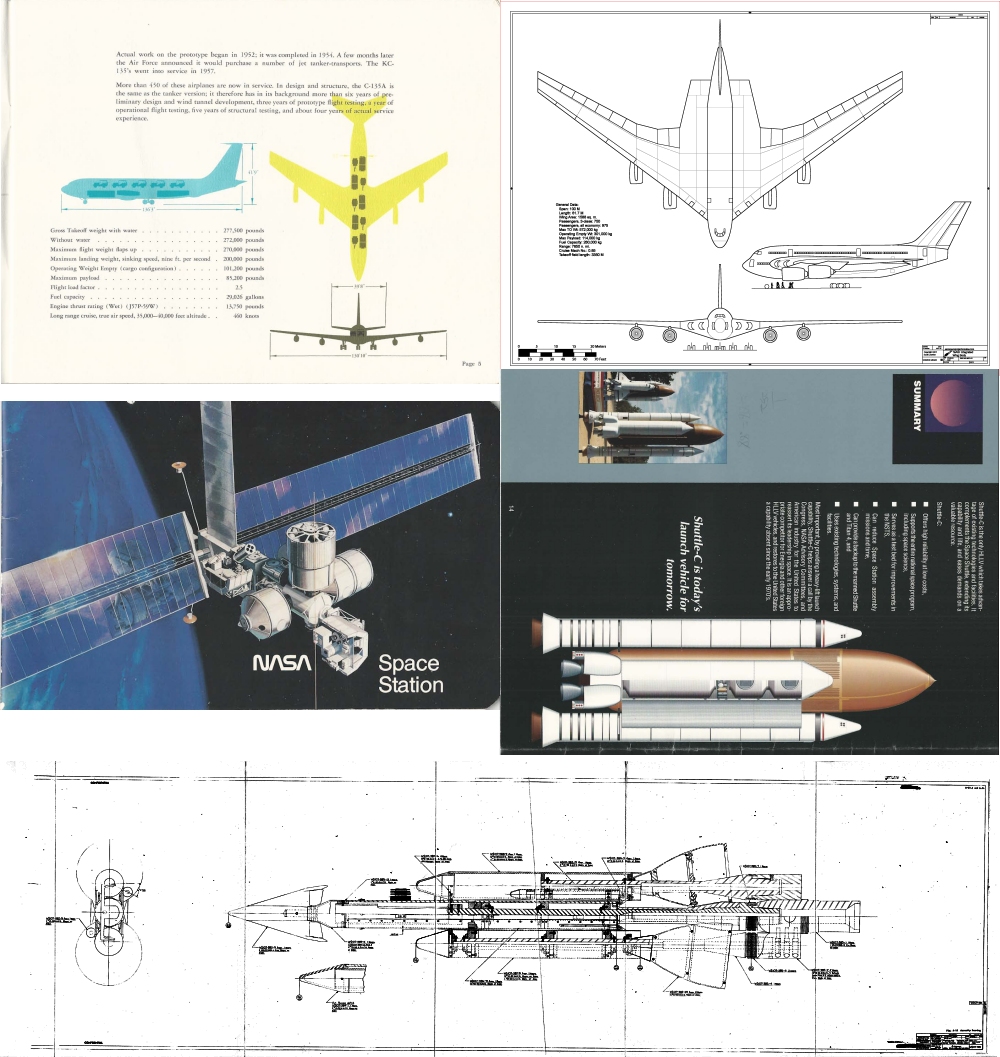

Got them done a little early this time, so here’s a review of what the APR Patrons will be receiving:

Patrons will receive:

A proposal brochure on the C-135A cargo transport

A brochure about the Shuttle-C

A well illustrated NASA-produced booklet from the mid 1980’s describing the space station as them conceived

A large format diagram showing a wind tunnel model of the Titan III/Dyna Soar

A CAD diagram of the ca. 2001 Russian TsAGI Integrated Wing Body large passenger transport jetliner

If these are of interest, please consider signing on to the APR Patreon.
