I have added three hi-rez scans to the APR Patreon “Extras” Dropbox folder for the month of 2015-07. If you are interested in these, they are available to all $4 and up patrons at the APR Patreon.

Bell artwork from the late 70’s or ’80’s depicting the D316 tiltrotor, a proposed operational derivative of their XV-15 research tiltrotor.

Bel D316 Tiltrotor art

Convair 58-9 SST, derived from the B-58 bomber (see HERE for a well illustrated article on this and other B-58 SSTs):

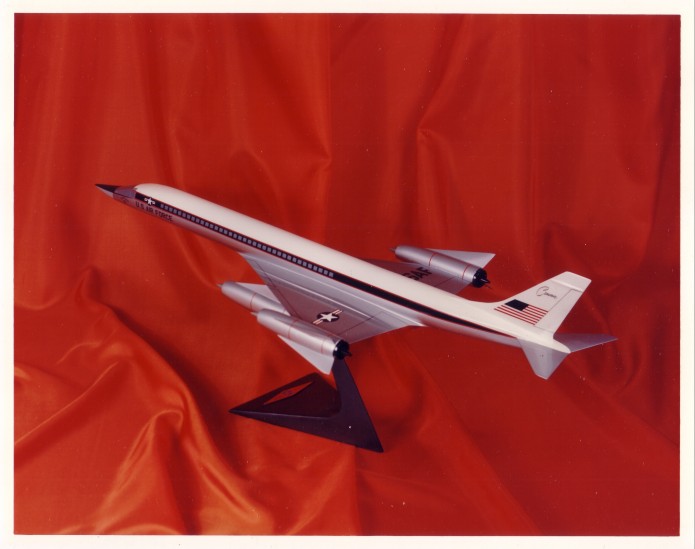

Convair 59-9 SST display model

Early artwork for a VTOL fighter concept from Ryan; this would eventually become the X-13:

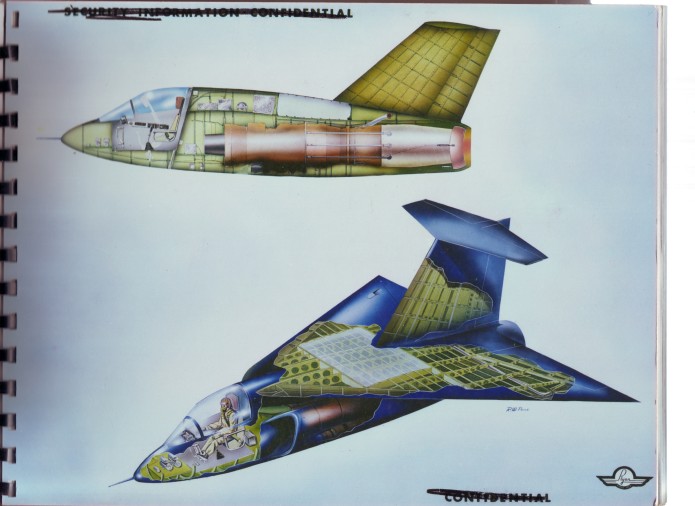

early ryan X-13 art

 Posted by at 11:06 am
Jul 092015


Rockwell art of an early Shuttle configuration. The full-rez version has been made available for $10-level patrons at the APR Patreon.

While this is broadly much like the STS as actually built, there are a lot of important differences. The spine down the top of the cargo bay… that was to give room for the cargo manipulator arm without putting it actually in the cylindrical bay, taking up valuable cargo space. The booster rockets have teardrop ports on the cylindrical sections just aft of the nosecones… these are the thrust termination ports that, in the event of an abort, would blow out through the forward dome of the rocket motors. This would not only slash the chamber pressure in the motors, it would provide an escape route for the hot gas to go forward, cancelling the thrust from the aft nozzle. The ET is of a slightly simpler geometry; the small cylinder on the nosecone contained the de-orbit solid rocket motor (because the ET would either go into orbit with the Shuttle, or so close to orbit that the splashdown location  would be somewhat randomized).

Old Shuttle Art - Launch

 Posted by at 1:47 pm
Jul 082015


I haven’t had an opportunity to really dig into this, but Boeing just patented a jet engine powered not by hydrocarbon fuel combustion but by small nuclear explosions. Basically an Orion (via laser-driven inertial confinement compression of tiny fusion fuel pellets) in a jet, stuck on a passenger plane.

Neato.

The US Patent Office page on this.

THIS should link directly to the PDF of the patent.

Sigh. Every single time I think I’ve got a handle on “this is everything in the world of NPP, I can finally finish the book,” they suck me back in.

 Posted by at 2:37 pm
