Sep 062012

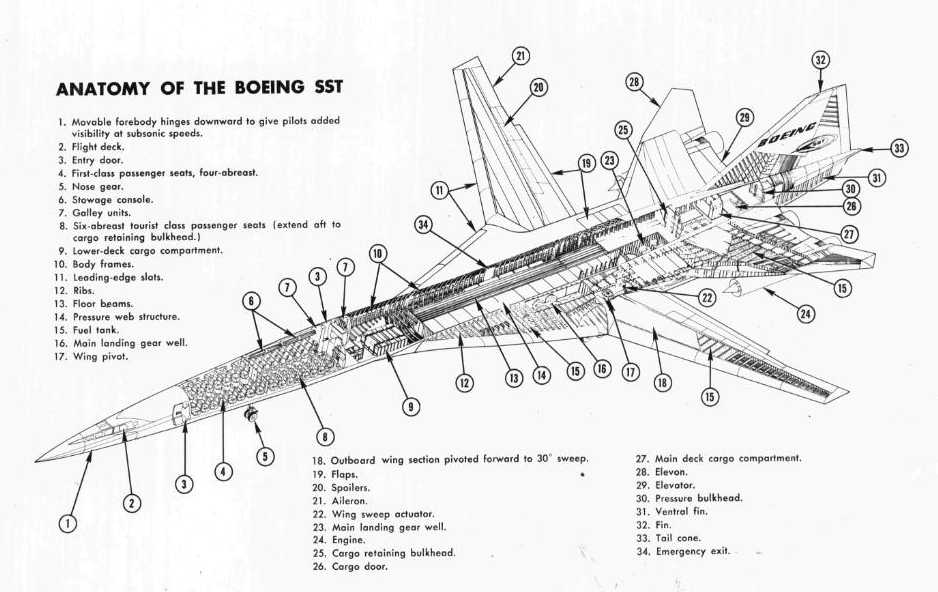

From an ebay auction, a 1966 Boeing cutaway drawing of the early swing-wing version of the 2707 SST. While the wing would have made low speed flight, in particular takeoffs and landings, more efficient and comfortable, the technology of the time would have made the wing pivot and associated systems simply too heavy and complex for a commercial system such as this. Thus the final 2707-300 SST did away with the variable geometry wing.

But damn if it wasn’t sexy.

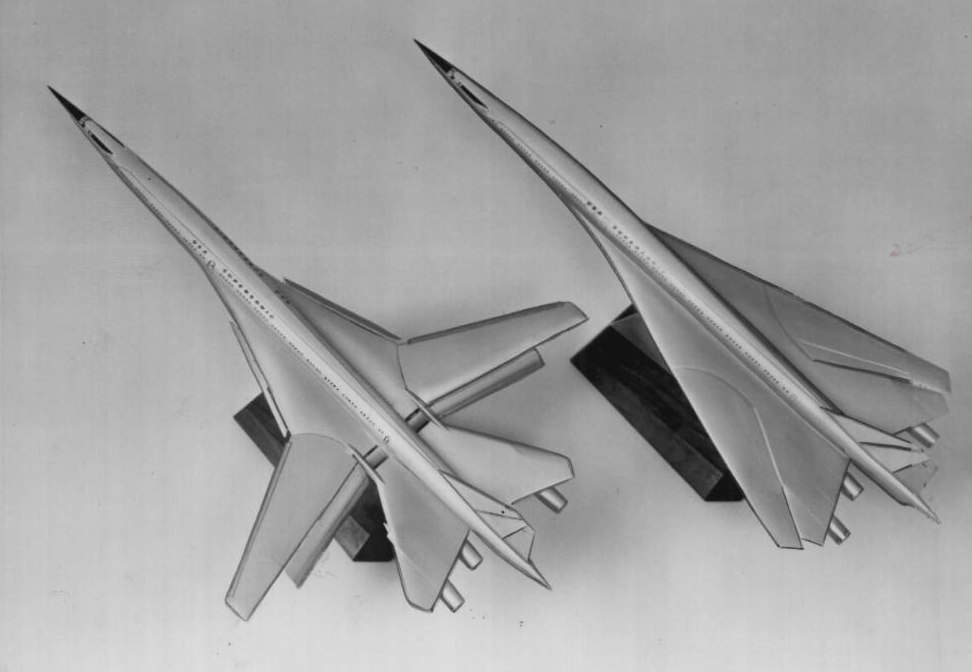

Photo of display models (from this auction)



 Posted by at 11:21 pm
Sep 052012


Found in a pile of ebay-obtained glossies – all the ones that could be identified were Boeing – was this one showing an armed and rather large hovercraft plowing over polar seas. No other data… date, identification, etc. all missing, just the image. What’s shown is a hovercraft propelled by six turbofan engines, with a very “Sea Shadow” type of semi-stealthy build, with a bunch of vertical launch tubes and what look rather like US Colonial Marine Corps sentry-guns scattered about the deck. The other artwork in the pile seemed to be from the 1970’s, so it’s a safe bet this design dates from then as well.

 Posted by at 11:57 pm
Sep 042012


Before Challenger ruined all hope of the Space Shuttle achieving its intended goals, there were many, many ideas put forth to increase the capabilities of the STS. Numerous concepts dealt with increasing the propulsion system… increased thrust and/or increased fuel mass. One of the less obvious ideas: stuff a massively reworked Titan II first stage underneath the external tank. This would increase liftoff thrust, increasing payload delivered to orbit. While Martin Marietta put some effort behind the concept, I don’t think NASA ever really took it very seriously.

This is from a slide scanned at the NASA HQ archive.

 Posted by at 2:43 am
Sep 032012


A followup to this. This seems to raise more questions than it answers… there are only two rather small engines, which would seem insufficient to drag this thing to Mach 3, especially being up above the fuselage in a lower pressure recovery region. The wing is necessarily thick and draggy, but it looks *really* thick and draggy.

[youtube bmzsyNeUrCQ]

 Posted by at 12:30 pm
Sep 022012


Another slide from the NASA HQ archive depicts a Gemini capsule landing under a Rogallo wing paraglider. The concept was given considerable study, and there was serious expectation that it would be instituted for “operational” Gemini spacecraft, such as military MOL flights and the like.

 Posted by at 8:44 pm
Sep 022012


OK, here’s one of the projects I’ve been working on of late… scanning and repairing the old “Collier’s space series” articles from the early 1950’s for reprinting in the AIAA-Houston section newsletter. As far as I’m aware, this is the first time these have been republished in clear, high-rez and full color format since the original release.

For those unaware, in the early 1950’s Collier’s magazine (similar to “The Saturday Evening Post”) ran a series of articles written by the likes of Willy Ley and Werner von Braun, illustrated by the likes of Chesley Bonestell and Fred Freeman, describing what the future of manned space exploration may look like. Their vision was, to put it mildly, grandiose, and far exceeded what the actual space program became and did… but the impact on the public of these articles helped lead to the space program becoming popular with the public… and the government. The designs that were produced, such as the Ferry Rocket and “Wheel” space stations, are comfortably described as “iconic.”

The July/August 2012 issue of AIAA-Houston Horizons reprints the complete first Collier’s article from March 22, 1952. The original magazine layout included numerous ads and extraneous bits that were edited out of this reprint, and in several cases replaced with “Mini-APR” articles, several of which tie directly into the Collier’s series. This first article includes about 30 pages of the original Collier’s stuff. Future issues of Horizons will carry the complete set of Collier’s article,s including the Moon exploration and Mars exploration articles.

As always, Horizons is a free-to-download PDF. New for this issue, it is available in both high and low resolution.

Feel free to spread the word about this. The more it is downloaded from the AIAA site, the more interest is shown in it, the more might be done with this in the future.

 Posted by at 12:35 pm
