Oct 092012


A piece of NASA-Langley artwork describing the future of aeropropulsion… the scramjet engine. The provenance on the art is hazy at best… found in the uncatalogued collection of a former Langley engineer, it probably dates to the mid 1960’s. The aircraft illustrated here has been seen from the early 1960s up into the late 1980s, so that at best brackets the art. The aircraft has been used as a hypersonic transport and as the first stage of a space launch system. As shown here, the model used was *probably* a wind tunnel model repainted and repurposed as a display model… none of the diagrams I’ve seen of it have included the “hump” on the underside of the aft expansion ramp. Most likely that’s the connection point for the support “sting” for tunnel use. Alternatively, it *could* represent a fairing for a rather sizable rocket engine, though that seems unlikely… during scramjet operation the hump would not only mess with exhaust flowfields, it would also be subjected toa  whole lot of thermal unpleasantness.

 Posted by at 8:33 pm
Oct 072012


The SRB-X is one of the most derided launch vehicles ever seriously considered. Initiated by NASA in the early 1980’s, the idea was to use Shuttle hardware – specifically Reusable Solid Rocket Motor components – to provide Shuttle-class payload capability. Theoretically the SRB-X, a stack of large solid rocket motors, would provide a low-cost semi-reusable launcher that would be rugged, reliable and could continue to fly if the shuttle itself was laid up for some reason. In reality, it would very likely have been every bit as expensive as we’ve come to expect from the Shuttle program.

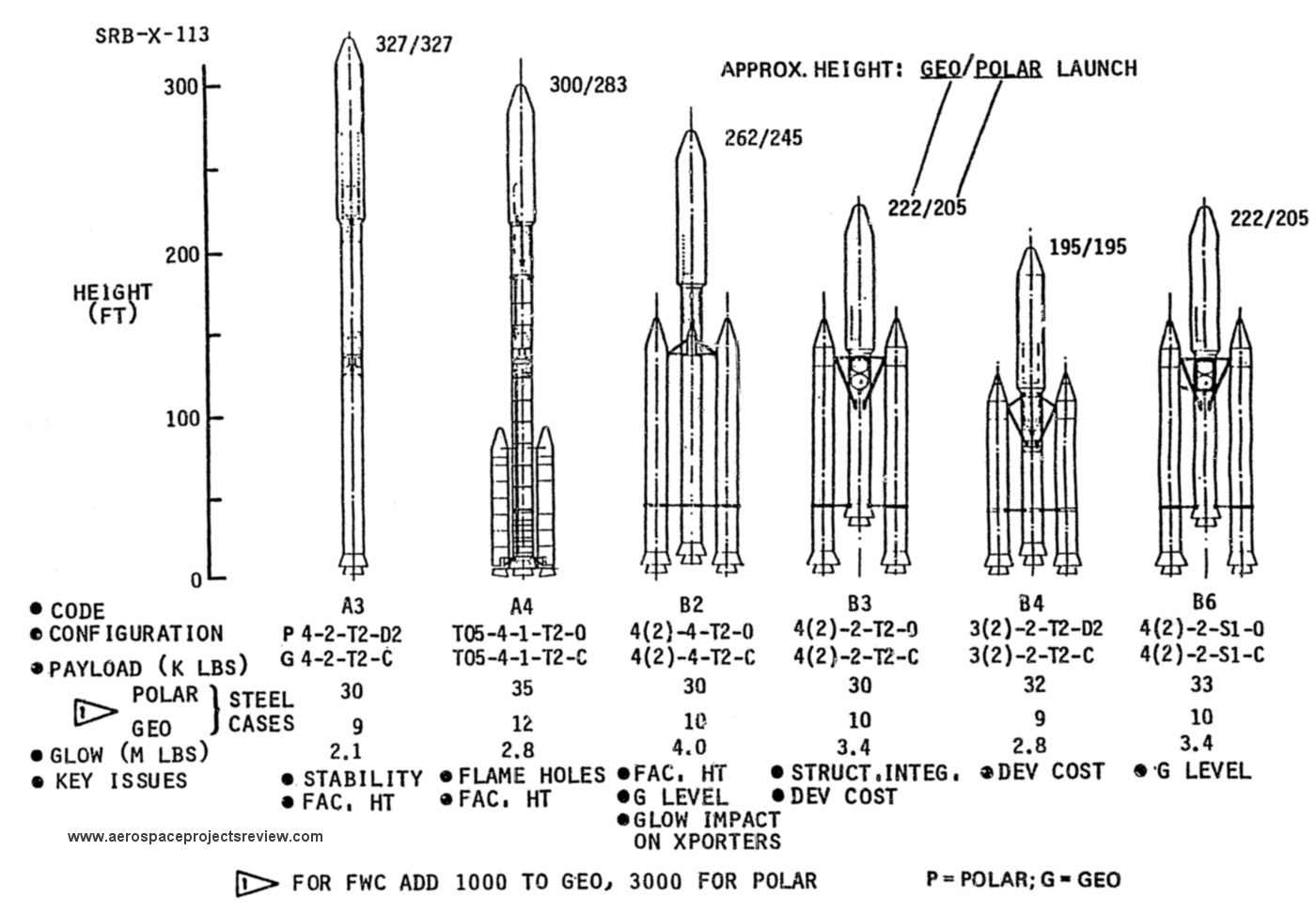

In 1983 Boeing analyzed the SRB-X system for NASA, studying detailed designs as well as a range of alternates. The basic SRB-X booster used a core vehicle composed of RSRM segments, using RSRMs as boosters. In order to use stock Shuttle launch facilities, the boosters were mounted well outboard of the core… with the same separation distance as between the RSRMs on a standard Shuttle stack. This added considerably to structural weight. Alternates studied included versions that were just linear stacks of RSRM-derived stages (leading to very long boosters) and versions that used Titan hardware including the UA-1205 boosters and the Titan III first stage as the second stage of the vehicle.

 Posted by at 12:17 am
Oct 022012

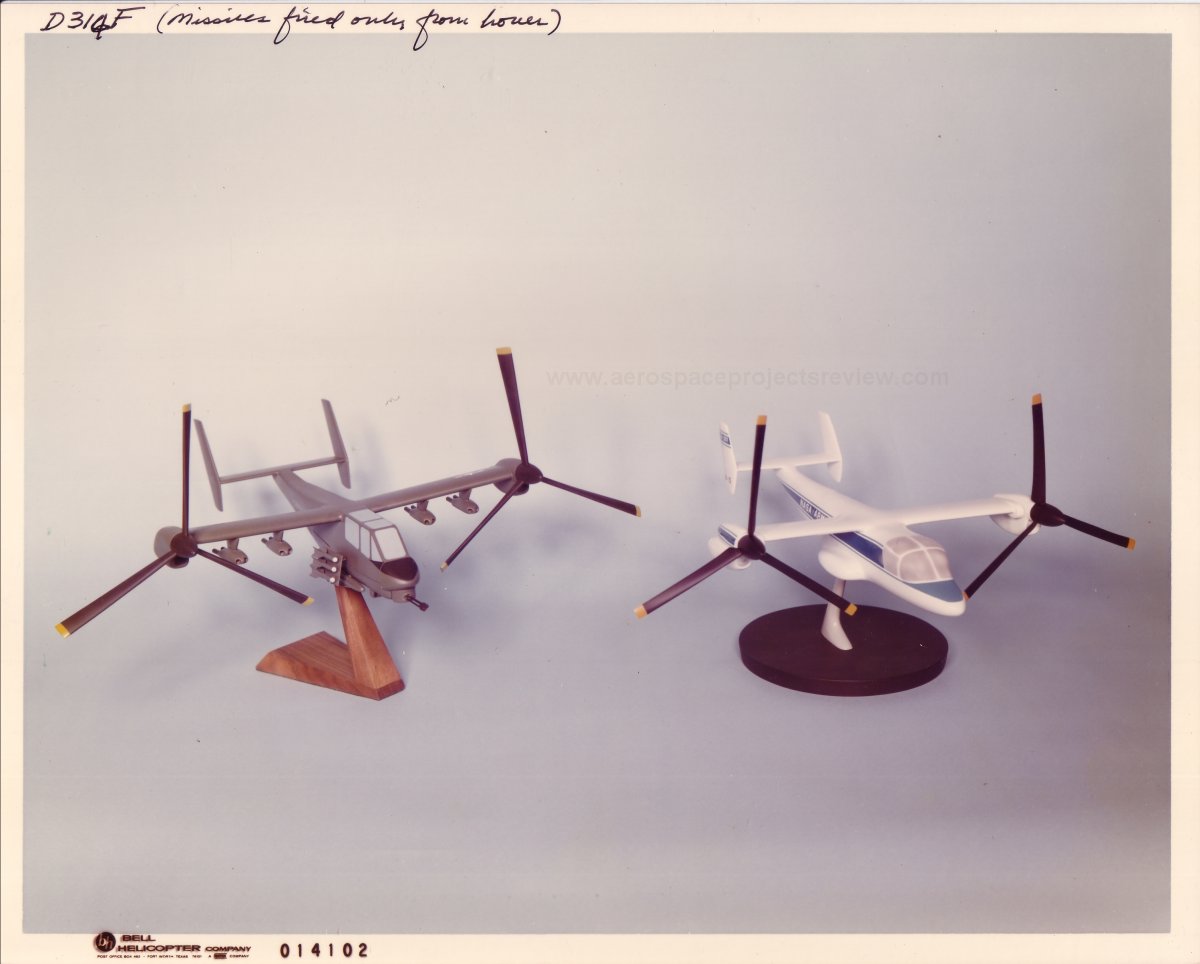

A Bell Helicopter concept in model form of an armed derivative of the XV-15 tiltrotor. This dated from the early/mid 1980’s and represented a ground attack aircraft… largely what the US Army was looking for in what became the LHX/RAH-66 Comanche program, just in tiltrotor form. As a tiltrotor, it would have had a much faster and more fuel efficient cruise, but a less efficient hover, than a helicopter. The Army turned out to not want tiltrotors for this application, and made sure that they were effectively excluded from the LHX competition.



Note the hand-written notation that missiles would only be fired in hover… otherwise, they would pass through the proprotor disk. However, it seems likely that missiles could be fired while the rotors were tiltedless than fully upwards, meaning that the craft could fire and move at a fair rate at the same time, just not at full speed.

 Posted by at 10:51 pm
