Jan 212016


A piece of Sikorsky concept art from 1959 illustrating a commercial passenger pod for the S-60 flying crane helicopter. Into the 1960’s there were a lot of people thinking that commercial helicopter “airliners” would soon be a practical reality… and obviously, helicopters are perfectly functional in the role of hauling people to and fro, but the idea never really caught on. And in retrospect it’s not difficult to see why.

Compared to turbojet or turboprop passenger planes, helicopters are creakingly slow and quite short ranged. So the idea was that helicopter-liners would serve as short range feeder vehicles, transporting businessmen and the like from city centers to outlying regions. A popular goal was to fly passengers from the top of skyscrapers to distant airports, saving considerable time and trouble with ground traffic. But in the end, while helicopters could do that – as many a multi-millionaire with his own helicopter can attest – the cost was always high, and the noise of regularly scheduled very large choppers was excessive. There was also always the fear of helicopters this big zipping up and down the city streets, and building the infrastructure to support in-city commercial heliports just seemed like too much effort.

1959-11-02-23

 Posted by at 10:27 am
Jan 032016


Somewhere north of 20 years ago I received a package in the mail from Martin-Marietta containing stuff on their then-current NIMF study. NIMF was a mangled acronym for Nuclear Rocket Using Indigenous Martian Fuel; basically a propellant tank, structure, landing gear and a nuclear rocket engine, to be used for landing a payload on Mars and for flying or hopping around. The propellant would be liquid carbon dioxide, easily compressed from the Martian atmosphere; the performance would be, by conventional liquid hydrogen nuclear rocket standards, reasonably awful, but it would be adequate to lurch back into Mars orbit or to do long range hops.

Two main designs seem to have been studied: a conical “ballistic” vehicle that would be a dedicated “hopper,” landing on its tail, and a winded vehicle that would land vertically in a horizontal attitude. This latter design was sent to me in the form of diagrams and five computer renders. The renders – early 1990’s vintage – came as viewgraph transparencies, clearly photographs of a computer monitor. The winged vehicle had simple shock absorbers for landing gear, terminating in dishes rather than wheels meaning that a rolling start or stop was impossible. The available information sadly doesn’t explain how the thing was supposed to land vertically.

martin-marietta_nimf0009

The full-rez scans of the viewgraphs have been made available to APR Patrons in the 2016-01 APR Extras Dropbox folder. If you’d like to help out and gain access to this and many other pieces of aerospace history, please check out the APR Patreon.

patreon-200

 Posted by at 2:16 am
Jul 252015


I have added three hi-rez scans to the APR Patreon “Extras” Dropbox folder for the month of 2015-07. If you are interested in these, they are available to all $4 and up patrons at the APR Patreon.

Bell artwork from the late 70’s or ’80’s depicting the D316 tiltrotor, a proposed operational derivative of their XV-15 research tiltrotor.

Bel D316 Tiltrotor art

Convair 58-9 SST, derived from the B-58 bomber (see HERE for a well illustrated article on this and other B-58 SSTs):

Convair 59-9 SST display model

Early artwork for a VTOL fighter concept from Ryan; this would eventually become the X-13:

early ryan X-13 art

 Posted by at 11:06 am
Jul 082015


Now available… three new additions to the US Aerospace Projects series.

US Bomber Projects #15

USBP#15 includes:

  • Bell D2001: A 1957 eight-engined Bell VTOL strike plane for the Navy
  • Lockheed “Harvey”: AKA the Hopeless Diamond, Lockheeds first design for what became the F-117
  • Convair Model 35: An early push-pull concept for the B-36
  • Rockwell D661-27: A nuclear powered strategic bomber
  • Boeing Model 464-49: The penultimate major design in the development of the B-52
  • Boeing Model 988-123: A highly agile stealthy strike fighter
  • Boeing Orbital Bomber: An early concept for a Dyna Soar derivative with eight nukes
  • Boeing Model 701-251: A twin engined concept on the road to the XB-59

USBP#15 can be purchased for downloading for the low, low price of $4.25.

usbp15ad2

usbp15ad1

——————————————-

US Transport Projects #4

USTP#4 includes:

  • Boeing Model 473-13: An early twin-engine jetliner
  • ICARUS Troop Transport: 1,200 marines, anywhere, anytime
  • Republic Model 10 SST: A little known SST competitor
  • Lockheed CL-593: A giant, if slow, logistics transporter
  • Boeing 763-059 NLA: A whole lotta passengers in one place
  • Fairchild M-534: A B-36 converted into a vast cargo carrier
  • Lockheed CL-1201: Probably the largest aircraft ever designed
  • Oblique All-Wing Supersonic Airplane: A supersonic variable-orientation flying wing

USTP#4 can be purchased for downloading for the low, low price of $4.25.

ustp04ad2

ustp04ad1

——————————

US Launch Vehicle Projects #2

USLP#2 includes:

  • Juno V, 4 stage: An early design that became the Saturn rocket
  • Boeing “Space Freighter”: a giant two-stage spaceplane for launching solar power satellites
  • Boeing NASP-D: A rare look at an operational National Aerospace Plane derivative
  • LLNL Mockingbird: The smallest SSTO ever designed
  • Boeing Model 922-101: A fully reusable Saturn V
  • NAR Phase B Space Shuttle: a fully reusable two-stage concept
  • Martin Marietta Inline SDV: A Shuttle-derived heavy lifter
  • Scaled Composites Model 351: The Stratolaunch carrier aircraft

USLP#2 can be purchased for downloading for the low, low price of $4.25.

uslp02ad2

uslp02ad1

 Posted by at 12:41 am
May 192015


Photos of some of the aerospace history I’ve been able to purchase lately thanks to the APR Patreon. If you’d like to help out and get in on this action, please check out the APR Patreon page.

WP_20150519_009 WP_20150519_010 WP_20150519_011 WP_20150519_004 WP_20150519_005 WP_20150519_006 WP_20150519_007 WP_20150519_008 WP_20150519_012 WP_20150519_013

And then there’s this. While I haven’t managed to get hold of the actual item, I have gotten full-color scans of this, in chunks. I am now piecing it together into one gigantic whole.

triebflugel

 Posted by at 11:00 pm
May 102015


This photo was passed to me to identify. Much of it looks like the Grumman G-623 VTOL fighter concept from the mid 1970s (illustrated below), but the tail is obviously entirely different and the nose is much pointier. It’s my guess that the model might represent an early version of the G-623 design. Can anyone confirm/deny?

unknown

The Grumman G-623:

US- Grumman VSTOL VFAX

 Posted by at 11:12 pm
Apr 262015

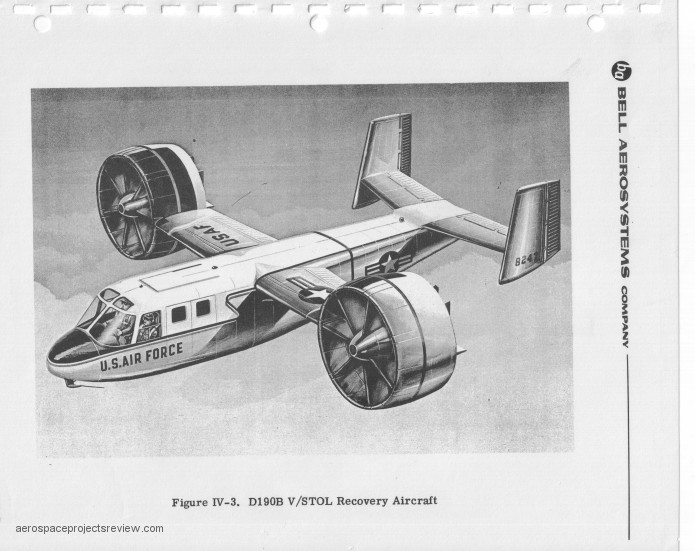

Below is an artists impression of the Bell D190B, a tilt-duct VTOL derived in part from the X-22. The D190 series, dating from the early 1960’s, was for a more-or-less common airframe design that could carry out a number of missions. Interestingly, variants of this design were considered for “parasite” roles. The aircraft could hard-dock to the underside of a C-130; the larger transport aircraft could then haul the smaller VTOL around the world, where it could serve as a rescue plane (note the rectangular hatch on the top of the fuselage). Another idea was for the small VTOL to serve as a crew or passenger transfer system for EC-135J (707 derivatives) flying command posts, including transporting VIPs (read: politicians) away from nuclear strikes to orbiting escape planes.

Sadly, while I’ve found many bits and pieces on this over the years, I’ve yet to come across good design data. If anyone has anything, I’d love to see it.

Bell D190B VTOL

I have made the full-rez version of this scan available at the APR Patreon for $4-and-up patrons. It is in the APR Patreon “Extras” Dropbox, in the 2015-04 folder.

 Posted by at 9:58 pm
Apr 182015


A piece of Bell Helicopter artwork depicting their design for the LHX competition, what became the RAH-66 Comanche. Note that this design featured unusual curved, swept sponsons and a NOTAR (no tail rotor) tail.

belllhxsart

The full resolution version of this scan has been made available for $4 patrons at the APR Patreon.

 Posted by at 4:51 pm
